| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

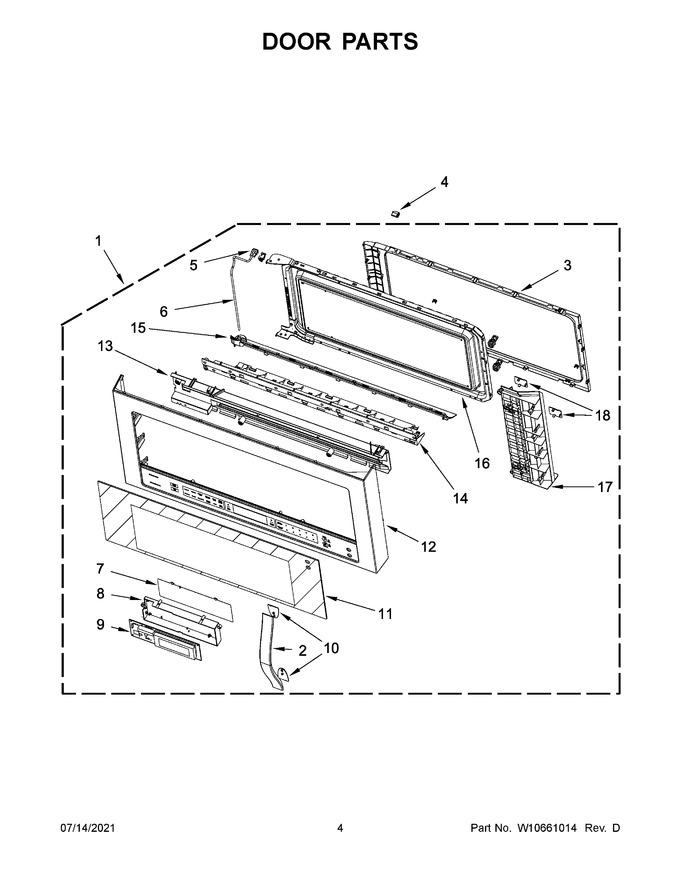

| 1 | W10860349 | Door, Complete (white) (Replaces: W10622223) |
|
- | |||||
| 2 | W10571333 | Handle (white) |
|
- | |||||
| 3 | W10648086 | Frame, Inner |
|
$ 86.25 | |||||
| 4 | W10643448 | Stopper, Door |
|
$ 19.76 | |||||
| 5 | W10478659 | Holder, Door Cable |
|
- | |||||
| 6 | W10508745 | Wire, Door Control Cable |
|
$ 24.86 | |||||
| 7 | W10540298 | Plate, Ui Insulation |
|
- | |||||
| 8 | W10478216 | Holder, Ui |
|
- | |||||
| 9 | W10508751 | Control |
|
- | |||||
| 10 | W10478213 | Cushion, Handle |
|
- | |||||
| 11 | WPW10478716 | Glass, Outer (white) (Replaces: W10478716) |
|
$ 169.77 | |||||
| 12 | W10648087 | Assembly, Door Frame (white) |
|
- | |||||
| 13 | W10617743 | Cover, Ui |
|
- | |||||
| 14 | W10476546 | Bracket, Door |
|
- | |||||
| 15 | W10570992 | Frame, Back Decorating (white) |
|
- | |||||
| 16 | W10568846 | Body, Door (with Glass) |
|
$ 215.51 | |||||
| 17 | W10734944 | Bracket, Outer Door (white) |
|
- | |||||
| 18 | W10571119 | Cover, Screw (white) |
|
- | |||||
| 11A | WPW10478721 | Glass, Outer (black) (Replaces: W10478721) |
|
$ 151.79 | |||||
| 11B | W10478675 | Glass, Outer (stainless) |
|
- | |||||
| 11C | WPW10531174 | Glass, Outer (white Ice) (Replaces: W10531174) |
|
$ 188.63 | |||||
| 12A | W10648088 | Assembly, Door Frame (black) |
|
- | |||||
| 12B | W10579828 | Assembly, Door Frame (stainless) |
|
$ 319.90 | |||||
| 12C | W10777692 | Assembly, Door Frame (white Ice) |
|
- | |||||
| 12D | W10777693 | Assembly, Door Frame (black Ice) |
|
- | |||||
| 15A | W10476550 | Frame, Back Decorating (black) |
|
- | |||||
| 17A | W11699920 | Bracket, Outer Door (black) (Replaces: W10734943) |
|
$ 73.87 | |||||
| 18A | W10478657 | Cover, Screw (black) |
|
Immediately | $ 19.25 | ||||
| 1A | W10860350 | Door, Complete (black) (Replaces: W10622226) |
|
$ 290.66 | |||||
| 1B | W10622227 | Door, Complete (stainless) |
|
$ 317.37 | |||||
| 1C | W10776058 | Door, Complete (white Ice) |
|
- | |||||
| 1D | W10860352 | Door, Complete (black Ice) (Replaces: W10776051) |
|
- | |||||
| 2A | W10571332 | Handle (black) |
|
- | |||||
| 2B | W10478162 | Handle (stainless) |
|
- |
