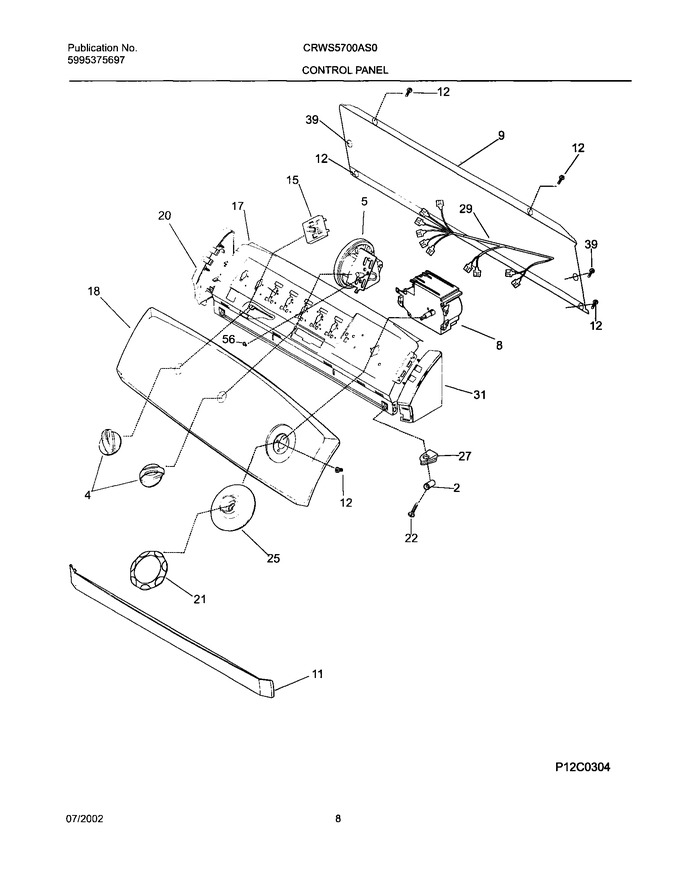

SELECT A DIAGRAM

01 - Cover


03 - Wshr Cab,top


05 - Wshr Mtr,hose


07 - Transmission


09 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer-console Mounting				$ 13.55
4	134844410		Knob-rotary-wht ``z`` Cons   (Replaces: 134034900)			Immediately	$ 57.36
5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
8	134049600		Timer Elec S Mallory Delta				$ 360.19
9	131992910		Backsheet-``z`` Cons-vaw				$ 64.73
11	134019900		Closure-front-wht``z``cons				$ 66.68
12	131168200		Screw,8-18 X 0.31 ,12			Immediately	$ 14.18
17	131993000		Brkt-cont Mtg-``z`` Cons-delta		Appelez-nous	-
18	134154800		Trimplate Fda2srsz		Appelez-nous	-
20	134019610		End Cap-lh-wht``z`` Cons				$ 46.31
21	134035200		Asmy-knob-timer-delta White				$ 41.27
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	134035100		Pointer-timer Delta Wht/dk Gry				$ 35.22
27	131197000		Clip-control Panel				$ 13.62
31	134019600		End Cap-rh-wht``z``cons				$ 46.10
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,56 ,cr/sq Drive				$ 10.46
F15	131081200		Switch-temperature		Appelez-nous	-
F29	134113500		Harn-vaw-``s``-rot Temp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
