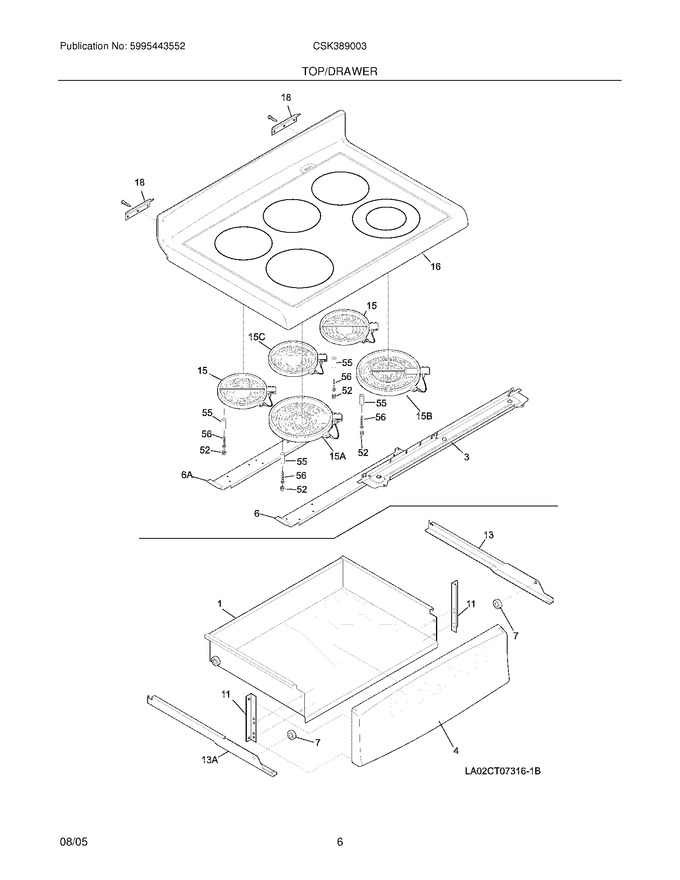

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107104)			Immediately	$ 143.39
3	318144323		Support,main Top		Appelez-nous	-
4	318044301		Panel,drawer ,white ,front		Appelez-nous	-
6	318180702		Bracket,element		Appelez-nous	-
7	318014800		Spacer				$ 16.59
11	318107500		Bracket,drawer Support ,(2)				$ 21.85
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318154537		Panel,main Top ,glass ,white ,assembly		Appelez-nous	-
18	318074410		Hinge,main Top Panel ,(2)				$ 1.47
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
13A	318018101		Channel-drawer,lh				$ 63.11
6A	318180713		Bracket,element		Appelez-nous	-
F15	318198817		Element,surface ,small/6`` ,1200 W			Immediately	$ 192.78
F15A	903118-9010		Element,surface ,large/8`` ,2200 W   (Replaces: 318198818)			Immediately	$ 236.18
F15B	318198925		Element,surface ,6/9 ,1200/2500w ,dual Radiant			Immediately	$ 283.81
F15C	318198825		Element,surface ,warmer ,100 W				$ 191.21
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
