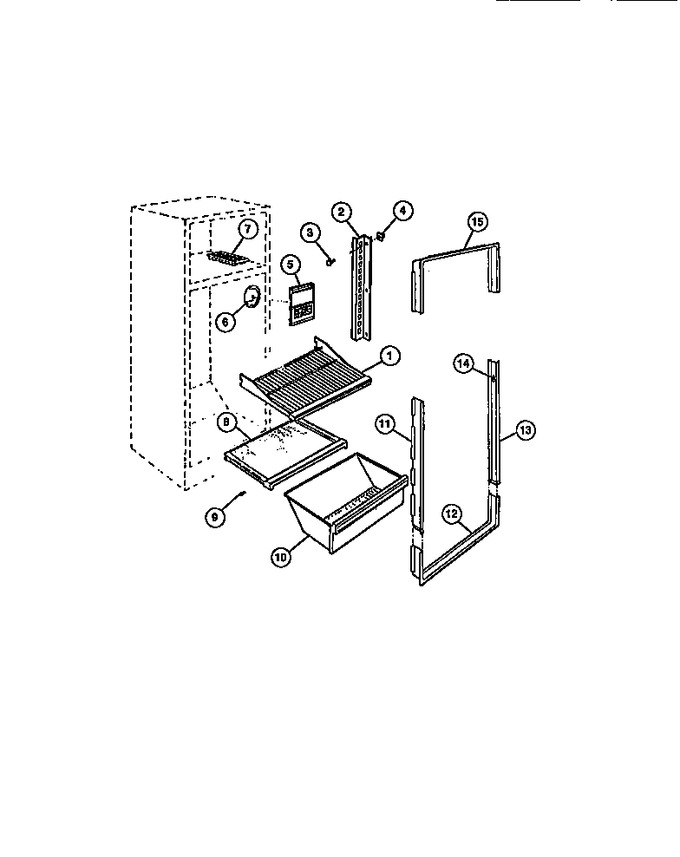

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205081 | Shelf-refrigerator (2) |
|
- | |||||
| 2 | 3205086 | Channel-shelf Mounting (2) |
|
- | |||||
| 3 | 3205078 | Screw-channel Mounting (6) |
|
- | |||||
| 4 | 3205079 | Grommet-screw (6) |
|
- | |||||
| 5 | 5303211316 | Air Deflector With Label |
|
- | |||||
| 6 | 08011183 | Damper |
|
- | |||||
| 7 | 5300002901 | Ice Tray (2) |
|
- | |||||
| 8 | 08011196 | Cover-pan |
|
- | |||||
| 9 | R000900715 | Support-cover |
|
- | |||||
| 10 | 08011229 | Pan-crisper |
|
- | |||||
| 11 | 08011227 | Moulding-ls |
|
- | |||||
| 11 | 3001693 | Moulding With Switch Hole, Ls (non-illustrated) |
|
- | |||||
| 12 | 08011226 | Moulding-bottom |
|
- | |||||
| 13 | 3001692 | Moulding With Switch Hole, Rs |
|
- | |||||
| 13 | 08011228 | Moulding, Rs (not Illustrated) |
|
- | |||||
| 14 | 5308000069 | Switch-light |
|
- | |||||
| 15 | 08011225 | Moulding-top |
|
- |
