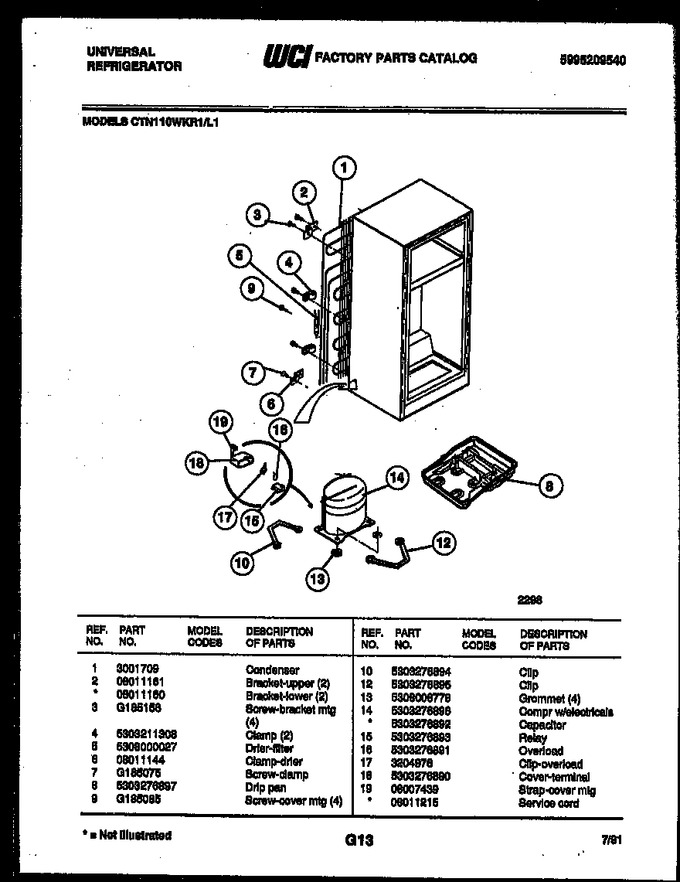

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001709 | Condenser |
|
- | |||||
| 2 | 08011161 | Bracket-upper (2) |
|
- | |||||
| 3 | G185156 | Screw-bracket Mtg (4) |
|
- | |||||
| 4 | 5303211308 | Clamp (2) |
|
- | |||||
| 5 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 6 | 08011144 | Clamp-drier |
|
- | |||||
| 7 | G185075 | Screw-clamp |
|
- | |||||
| 8 | 5303276897 | Drip Pan |
|
- | |||||
| 9 | G185085 | Screw-cover Mtg (4) |
|
- | |||||
| 10 | 5303276894 | Clip |
|
- | |||||
| 12 | 5303276895 | Clip |
|
- | |||||
| 13 | 5308008778 | Grommet (4) |
|
- | |||||
| 14 | 5303276896 | Compr W/ Electricals |
|
- | |||||
| 15 | 5303276893 | Relay |
|
- | |||||
| 16 | 5303276891 | Overload |
|
- | |||||
| 17 | 3204976 | Clip-overload |
|
- | |||||
| 18 | 5303276890 | Cover-terminal |
|
- | |||||
| 19 | 08007439 | Strap-cover Mtg |
|
- | |||||
| *56202 | 08011215 | Service Cord |
|
- | |||||
| 14A | 5303276892 | Capacitor (non-illustrated) |
|
- | |||||
| 2A | 08011160 | Bracket-lower (2) (non-illustrated) |
|
- |
