01 - Cover Sheet


02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts

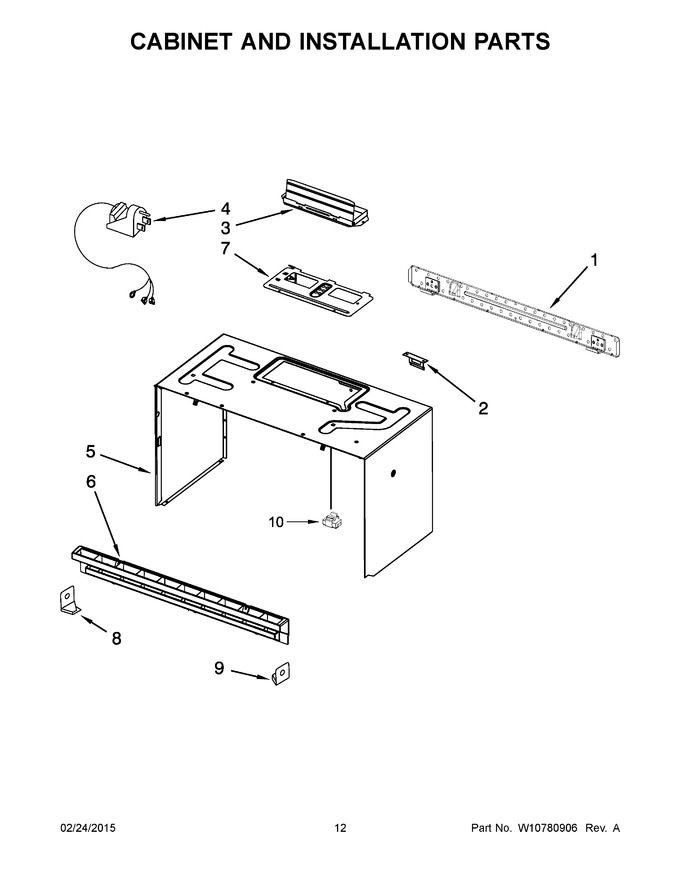

07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 21.16
2	8206385		Support, Wire Clip				$ 31.89
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 65.74
4	W10708076		Cord, Power   (Replaces: W10654511)				$ 18.48
5	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 250.22
6	W10269471		Grille, Vent (white)			Immediately	$ 98.77
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10830163		Holder, Vent Left Side (black)   (Replaces: W10703285)				$ 12.18
9	W10810989		Holder, Vent Right Side (black)   (Replaces: W10703283)				$ 8.76
10	W10596040		Assembly, Mounting Nut			Immediately	$ 8.30
5A	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 255.01
6A	W10259625		Grille, Vent (black)			Immediately	$ 67.30
8A	W11026306		Holder, Vent Left Side (stainless)   (Replaces: W10703284)			Immediately	$ 6.47
9A	W10703282		Holder, Vent Right Side (stainless)				$ 9.44
NI	W10821385		Miscellaneous Parts, Installation, Hardware   (Replaces: 8206614)			Immediately	$ 88.90
NI	W10540464		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	W10190018		Miscellaneous Parts, Template, Upper			Immediately	$ 6.47
NI	W10540465		Miscellaneous Parts, Hdlamp/tt Wire Assembly		Appelez-nous	-
NI	W10539842		Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer				$ 14.31
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 21.50
NI	W10470168		Miscellaneous Parts, Harness, Ntc Sensor Flat Wire				$ 36.63
NI	W10539846		Miscellaneous Parts, Harness, Message Wire		Appelez-nous	-
NI	W10563144		Miscellaneous Parts, Ground Wire Assembly		Appelez-nous	-
