01 - Cover Sheet

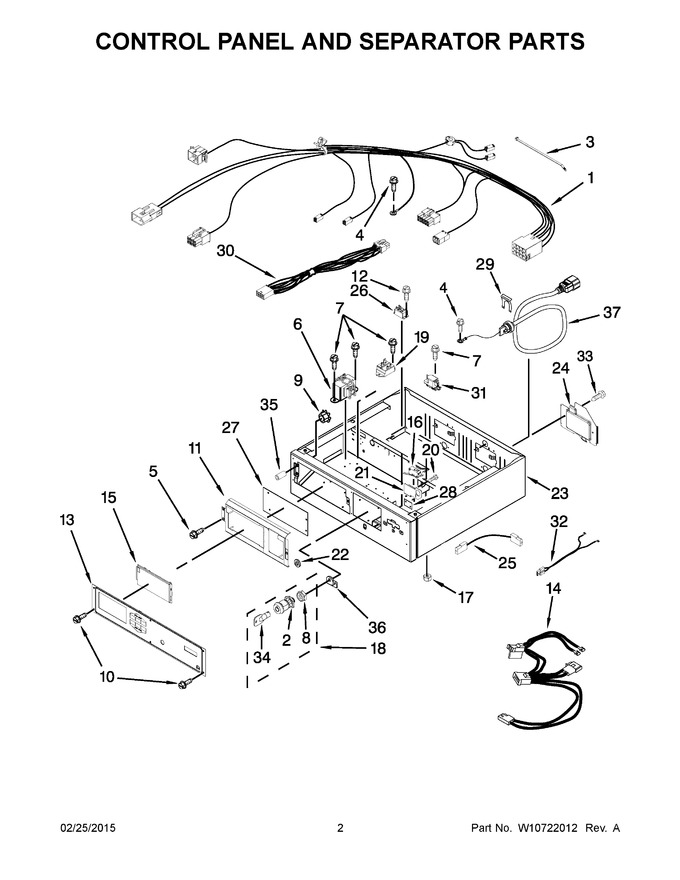

02 - Control Panel And Separator Parts


03 - Lower Cabinet And Front Panel Parts


04 - Upper Cabinet And Front Panel Parts


05 - Upper And Lower Bulkhead Parts


06 - Door Parts


07 - Burner Assembly


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11352532		Harness, Collar   (Replaces: W10702052)		Appelez-nous	-
2	W11395752		Nut, Hex   (Replaces: W10139762)				$ 11.74
3	WPW10155270		Tie, Cable   (Replaces: 8529895)				$ 5.55
4	W10850756		Screw   (Replaces: 8533974)				$ 6.98
5	W10756178		Screw   (Replaces: W10140652)				$ 5.39
6	W10237957		Transformer 120 - 22.5 Vac		Appelez-nous	-
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
8	WPW10133264		Nut, Hex   (Replaces: W10177242)				$ 125.12
9	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
11	W10657185		Plate, Control Mounting		Appelez-nous	-
12	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
13	W10678233		Facia Console		Appelez-nous	-
14	W10250902		Harness, Gas		Appelez-nous	-
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 63.37
16	W10133281		Switch, Service Access		Appelez-nous	-
17	WPW10080190		Nut, Hex (left Hand Thread)   (Replaces: W10001120)			Immediately	$ 7.64
18	WPW10133264		Assembly, Lock Access Door   (Replaces: W10133264)				$ 125.12
19	W10133335		Relay, Motor				$ 40.14
20	3400408		Screw		Appelez-nous	-
21	W10160652		Bracket-switch		Appelez-nous	-
22	2006252		Washer, Nylon		Appelez-nous	-
23	W10678213		Collar		Appelez-nous	-
24	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 539.78
25	W10769481		Jumper, Coin Box		Appelez-nous	-
26	W11553481		Relay, Heater   (Replaces: W10258680)		Appelez-nous	-
27	W11398779		Control Board   (Replaces: W10678221)				$ 519.78
28	W10151156		Shield, Sensor Switch		Appelez-nous	-
29	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 6.66
30	W10111027		Jumper, Transformer				$ 41.23
31	W10189038		Rfi Filter Cpl (export)				$ 87.59
32	W10272448		Jumper, Line Filter		Appelez-nous	-
33	W11676450		Screw   (Replaces: 3400000)				$ 12.65
34	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 19.89
35	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
36	W10233256		Cam, Locking Iec				$ 66.19
37	WPW10476824		Cord, Power   (Replaces: W10476824)				$ 23.35
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11384794		10a Cord Adaptor (austrailian)   (Replaces: W10476818)		Appelez-nous	-
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 24.03
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 69.35
