View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

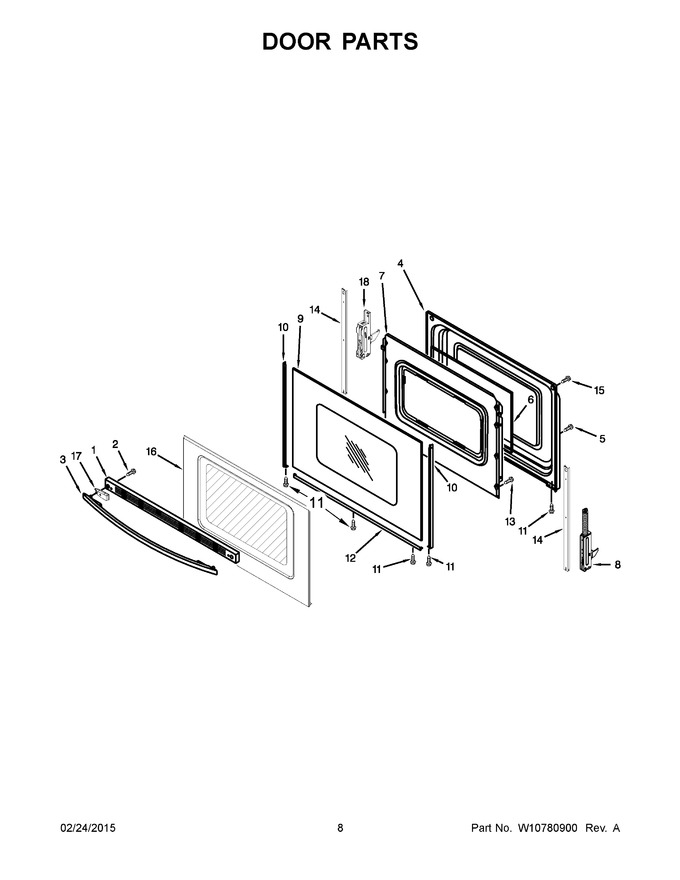

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 92.94 | ||||
| 2 | WPW10465148 | Screw (Replaces: W10465148) |
|
Immediately | $ 7.91 | ||||
| 3 | W10300489 | Handle, Door (white) |
|
Immediately | $ 209.90 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 319.62 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W10620754) |
|
$ 147.15 | |||||
| 7 | W11685635 | Retainer, Insulation (Replaces: 9761501) |
|
$ 161.39 | |||||
| 8 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 47.11 | ||||
| 9 | WPW10409945 | Glass, Outer (white) (Replaces: W10409945) |
|
Immediately | $ 223.91 | ||||
| 10 | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.26 | ||||
| 12 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 52.61 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 23.72 | ||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.00 | ||||
| 16 | W10330077 | Glass Assembly, Outer Door (stainless) |
|
$ 202.23 | |||||
| 17 | WPW10410341 | Standoff, Handle (black) (Replaces: W10410341) |
|
$ 69.21 | |||||
| 18 | WPW10299227 | Hinge, Passive (without Spring) (Replaces: W10299227) |
|
Immediately | $ 63.67 | ||||
| 10A | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 10B | W10761018 | Trim, Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 48.39 | ||||
| 10C | W10761014 | Trim, Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 65.66 | ||||
| 12A | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 142.16 | ||||
| 1A | WPW10310922 | Trim, Top (black) (Replaces: W10310922) |
|
Immediately | $ 157.83 | ||||
| 3A | W10300490 | Handle, Door (black) |
|
Immediately | $ 141.08 | ||||
| 3B | WPW10618239 | Handle, Door (stainless) (Replaces: W10618239) |
|
Immediately | $ 157.99 | ||||
| 9A | WPW10409946 | Glass, Outer (black) (Replaces: W10409946) |
|
$ 273.65 |
