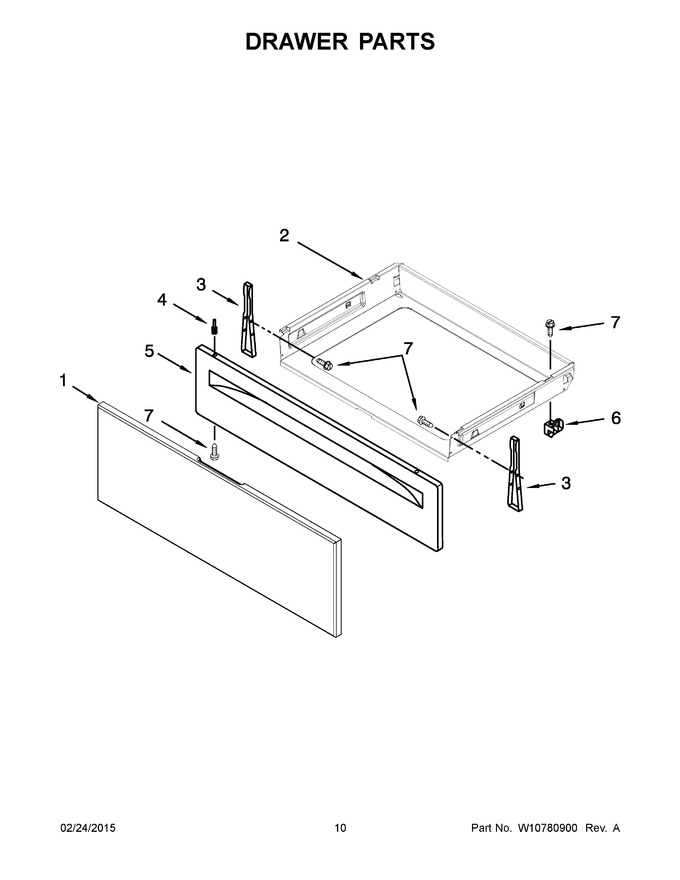

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11804926 | Panel, Drawer (ss Model) (Replaces: W10330070) |
|
$ 159.92 | |||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 124.34 | ||||
| 3 | WPW10462912 | Bracket, Mounting Drawer (Replaces: W10462912) |
|
Immediately | $ 114.65 | ||||
| 4 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 9.49 | ||||
| 5 | W11219377 | Panel, Drawer Front (white) (Replaces: 8053339) |
|
$ 182.21 | |||||
| 6 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 16.69 | ||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 3A | W10838990 | Bracket, Mounting Drawer (stainless Model) (Replaces: W10462910) |
|
Immediately | $ 76.24 | ||||
| 4A | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 9.60 | ||||
| 5A | W11230488 | Panel, Drawer Front (black) (Replaces: 8053341) |
|
$ 182.09 |
