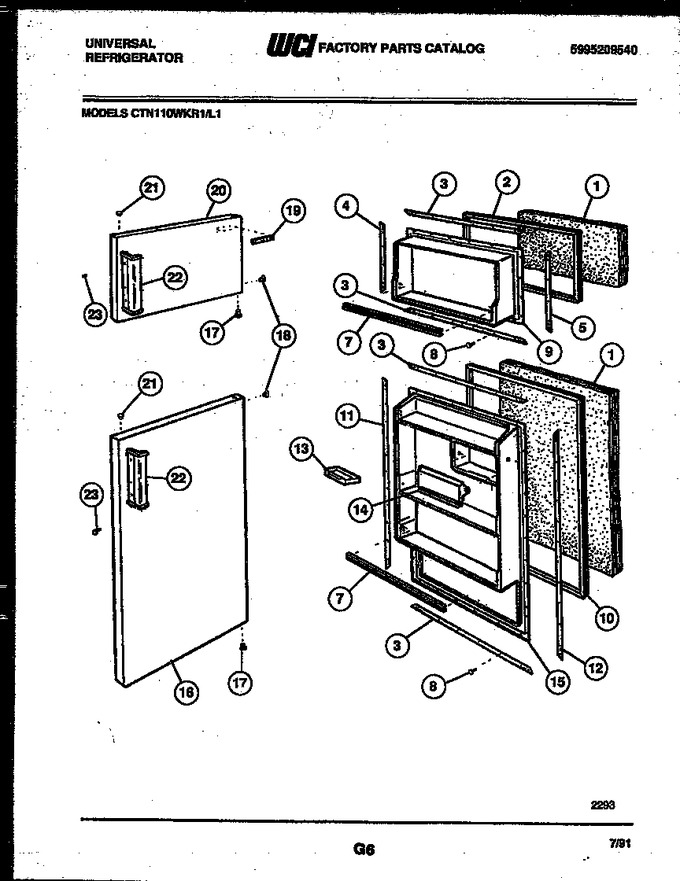

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303007739		Insulation-door (bulk)		Appelez-nous	-
2	08011185		Gasket-frdr Dr-white		Appelez-nous	-
3	08011191		Retainer-top/bottom (4)		Appelez-nous	-
4	5303276876		Retainer-ls		Appelez-nous	-
5	08011189		Retainer-rs		Appelez-nous	-
7	5303276877		Rack-door (4)		Appelez-nous	-
8	134178901		Screw-8a X 1/2 (54)   (Replaces: 5303211311)				$ 14.89
9	G185131		Inner Panel-freezer		Appelez-nous	-
10	08011186		Gasket-refr Dr-white		Appelez-nous	-
11	08011188		Retainer-ls		Appelez-nous	-
12	08011187		Retainer-rs		Appelez-nous	-
13	5303276880		Butter Dish		Appelez-nous	-
14	5303276881		Dairy Door		Appelez-nous	-
15	3205054		Inner Panel-refrigerator		Appelez-nous	-
16	5303276886		Refrigerator Door-white		Appelez-nous	-
17	5308012007		Bearing, Hinge (8)		Appelez-nous	-
18	240494001		Plug-white (8)   (Replaces: 5308000090)			Immediately	$ 18.20
19	5303276883		Nameplate		Appelez-nous	-
20	5303276885		Freezer Door-almond		Appelez-nous	-
20	5303276884		Freezer Door-white		Appelez-nous	-
21	5308000134		Plug-white (2)				$ 5.62
22	5308009875		Handle Assembly (2)		Appelez-nous	-
23	5308011745		Screw				$ 10.38
*56191	5303276882		Egg Tray		Appelez-nous	-
