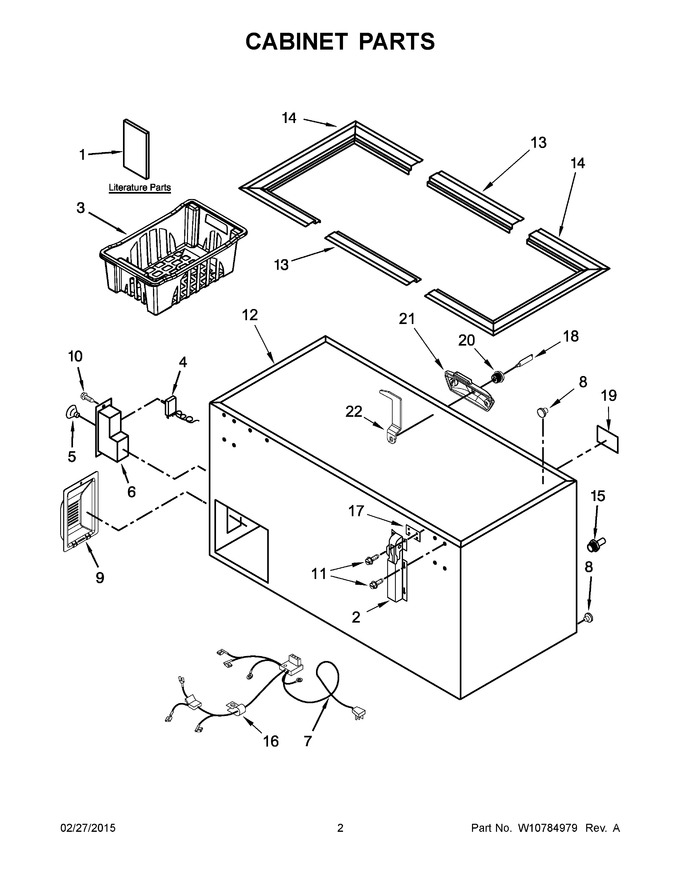

01 - Cover Sheet


02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10649227		Use & Care Guide		Appelez-nous	-
2	W11192185		Hinge Assembly   (Replaces: W10670142)				$ 164.89
3	W11553315		Basket, Upper   (Replaces: W10723246)				$ 88.53
4	WP4-35940-001		Thermostat   (Replaces: 4-35940-001)				$ 148.16
5	W10738934		Knob, Thermostat		Appelez-nous	-
6	W10682894		Control Box		Appelez-nous	-
7	W10631222		Wiring Harness				$ 137.61
8	3-33211-001		Plug, Drain				$ 10.63
9	W10574468		Panel, Access				$ 24.78
10	3-24004-049		Screw		Appelez-nous	-
11	WPW10031790		Screw   (Replaces: 3-24004-005)			Immediately	$ 7.87
12	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
13	W11045298		Strip, Breaker   (Replaces: W10678082)		Appelez-nous	-
14	W11045300		Strip, End Breaker   (Replaces: W10678015)				$ 80.74
15	W11663505		Adapter, Drain   (Replaces: 1-33178)				$ 15.45
16	W11234470		Clamp, Power Cord   (Replaces: W10303628)				$ 18.96
17	1-17548-006		Spacer, Hinge				$ 18.64
18	W10838052		Key   (Replaces: W10668135)				$ 34.86
19	W11178521		Nameplate (white)   (Replaces: W10481434)			Immediately	$ 56.82
20	W10664016		Barrel, Lock				$ 107.20
21	W10711162		Housing, Lock				$ 30.12
22	W10714897		Latch, Lock				$ 25.44

    View Diagram in Separate Window       Print Part List
