SELECT A DIAGRAM

01 - Cover


03 - Cabinet/top

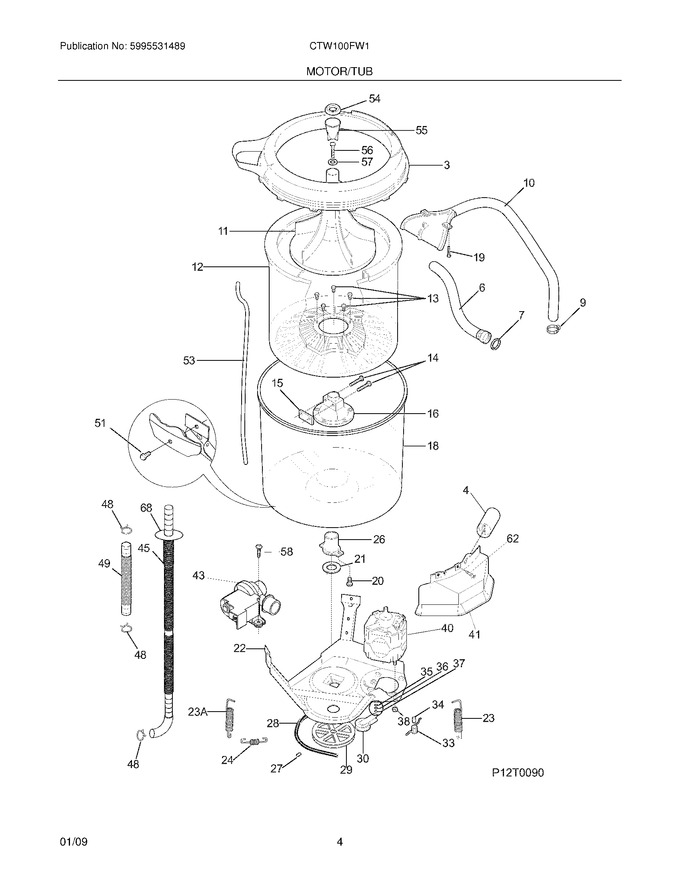

05 - Motor/tub


07 - Transmission


09 - Control/panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131551103		Cover,splash Tub ,with Seal				$ 206.72
6	131454100		Hose,water Inlet ,4 Ft. ,hose & Washer		Appelez-nous	-
7	5303161296		Washer-inlet Hose			Immediately	$ 2,372.96
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 32.09
10	134211700		Hose Assy,w/nozzle		Appelez-nous	-
11	131427200		Agitator				$ 246.02
12	131221300		Tub-spin		Appelez-nous	-
13	137546400		Screw,trunion ,5/16-18 X 0.625 ,(5)   (Replaces: 5303283293)				$ 28.35
14	137539500		Screw,lockplate ,5/16-18 X 1.625   (Replaces: 131192800)				$ 20.24
15	137107000		Plate,lock   (Replaces: 5308001923)			Immediately	$ 26.94
16	131545101		Trunnion				$ 162.23
18	131557201		Tub,splash ,w/air Dome,brg				$ 294.91
19	131205300		Screw,10-16 X 0.750			Immediately	$ 12.10
20	3205150		Screw,tub Bearing ,8-12b X 0.750				$ 3.55
21	5308002401		Washer, Spin Bearing, Upper			Immediately	$ 16.00
22	131373610		Leg & Dome Assy				$ 313.43
23	134886600		Spring,vertical ,short			Immediately	$ 37.57
24	131373900		Spring-horizontal				$ 41.30
27	5303304825		Screw,set,hex Hd Cup ,5/16-18 X 0.85 ,xmsn Pulley,hex Head Cup Pt		Appelez-nous	-
33	3204425		Spring,torsional				$ 45.09
34	3204426		Sleeve-idler Pivot				$ 9.35
35	3161433		Ring-retaining				$ 18.79
36	5303261031		Washer-pivot Shaft				$ 12.71
37	5303161306		Washer,spring Type				$ 12.49
38	5303318708		Nut,hex Flange ,motor Mounting				$ 5.57
41	131715801		Shield,motor Assy ,incl Capacitor				$ 69.30
41	134455500		Shield,motor Assy				$ 24.36
48	5304536802		Clamp,hose ,wire   (Replaces: 131306234)			Immediately	$ 4.01
51	134164400		Screw,hex Washer Head ,5/16-18 X 0.625				$ 10.87
53	5304401845		Tube,pressure ,vinyl   (Replaces: 5300771996)				$ 58.12
54	131266800		Cap-dispenser				$ 46.67
55	131206100		Cup-dispenser				$ 52.82
56	131468900		Screw,agitator Mtg ,5/16-18 X 1.250				$ 11.76
57	131339600		Spacer,agitator Mtg ,rubber				$ 18.79
58	134160900		Screw,washer Hd ,10-16ab X 0.75				$ 12.05
62	131302800		Screw,10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
68	131707800		Ring-drain Hose				$ 45.25
23A	134885900		Spring,vertical				$ 21.27
F26	3204405		Bearing-outer Tub			Immediately	$ 97.81
F28	134511600		V-belt,washer Drive ,standard 4l			Immediately	$ 28.41
F29	131498301		Pulley,xmsn Drive				$ 70.77
F30	131862900		Idler Arm Assy,vaw ,with Pulley				$ 28.25
F4	131212303		Capacitor,motor		Appelez-nous	-
F40	134156400		Motor,3/4 Hp,1 Speed ,with Pulley				$ 378.48
F43	137221600		Pump,drain   (Replaces: 134740500)			Immediately	$ 189.21
F45	134592700		Hose,drain			Immediately	$ 89.31
F49	131494800		Hose-pump To Tub			Immediately	$ 72.30
NI	131901400		· Seal,splash Cover			Immediately	$ 21.69
NI	134745300		Clip,drain Hose				$ 11.66
NI	5303309503		Clip,drain Hose ,back Sheet				$ 7.09
NI	134261300		Clip,drain Hose ,push-mount				$ 12.05
NI	131663500		Cushion,drain Hose ,base				$ 23.00
NI	131453000		Bushing,snap-in				$ 10.63
NI	5303212877		Insert,spring Adjuster ,vertical				$ 18.38

    View Diagram in Separate Window       Print Part List
