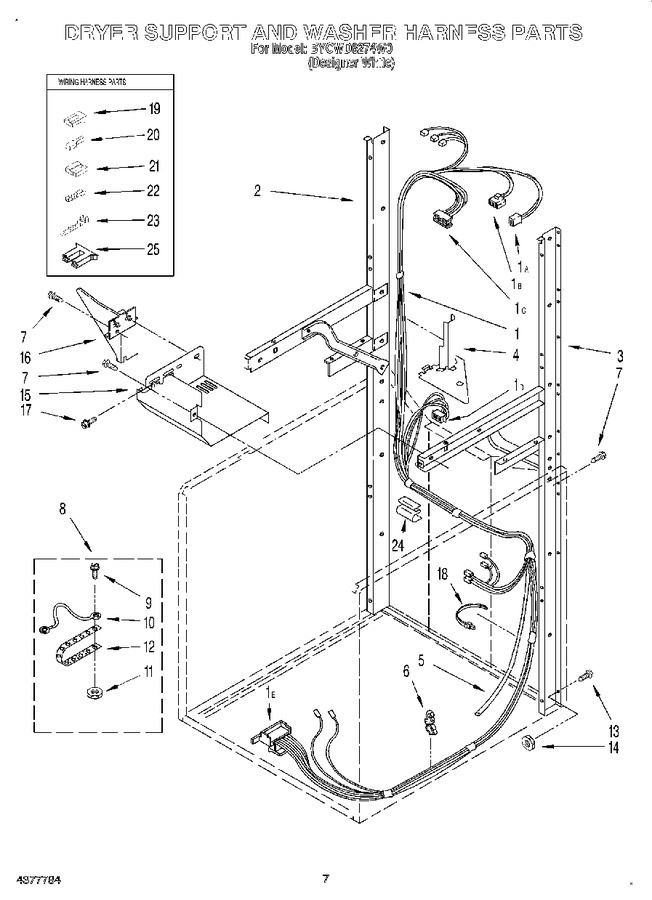

BYCWD6274W0 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	3396692	Harness - Washer	Appelez-nous	-
2	3388851	Channel Assembly (left Hand Side)			$ 288.73
3	3388850	Channel Assembly (right Hand Side)			$ 289.31
4	3390609	Shield, Harness	Appelez-nous	-
5	W10834213	Hose, Pressure Switch (Replaces: 3350124)		Immediately	$ 28.51
6	3390496	Clip, Harness	Appelez-nous	-
7	WP681414	Screw, 10-16 X 1/2 (6) (Replaces: 343641)		Immediately	$ 7.07
8	685463	Kit, Wire Grounding	Appelez-nous	-
9	132848	Screw, 10-24 X 1	Appelez-nous	-
10	685449	Wire	Appelez-nous	-
11	W10080180	Nut, Hex (Replaces: 120361)			$ 12.13
12	22965	Strap, Grounding	Appelez-nous	-
13	9415810	Bolt, 5/16-18 X 1/2 (4)	Appelez-nous	-
14	3393930	Nut, Hex (4)	Appelez-nous	-
15	W11108181	Shield, Front (Replaces: 3394350)			$ 64.83
16	3390336	Shield, Thermostat	Appelez-nous	-
17	WP308685	Screw, 10-16 X 1/2 (Replaces: 3393008)		Immediately	$ 7.08
18	3391249	Clip, Harness (2)	Appelez-nous	-
19	358736	Insulator	Appelez-nous	-
20	WP285432	Terminal, Female (Replaces: 358763)			$ 6.99
21	374230	Block, Terminal	Appelez-nous	-
22	352088	Terminal, Female			$ 5.83
23	94613	Terminal, (male)	Appelez-nous	-
23	WP94614	Terminal (female) (Replaces: 94614)			$ 6.90
24	63523	Protector, Harness			$ 169.95
25	3354925	Connector H-pod	Appelez-nous	-
1A	3350130	Plug, 3 Way (uses Terminal 94614)			$ 11.72
1B	3347243	Connector, 5 Way (uses Terminal 352088)	Appelez-nous	-
1C	W10876590	Block, Disconnect - Timer (uses Terminal 352088) (Replaces: 352089)			$ 11.48
1D	3350211	Receptacle, 3 Way (uses Terminal 94614)	Appelez-nous	-
1E	WP62505	Block, Disconnect (uses Terminal 352088) (Replaces: 62505)			$ 21.35
