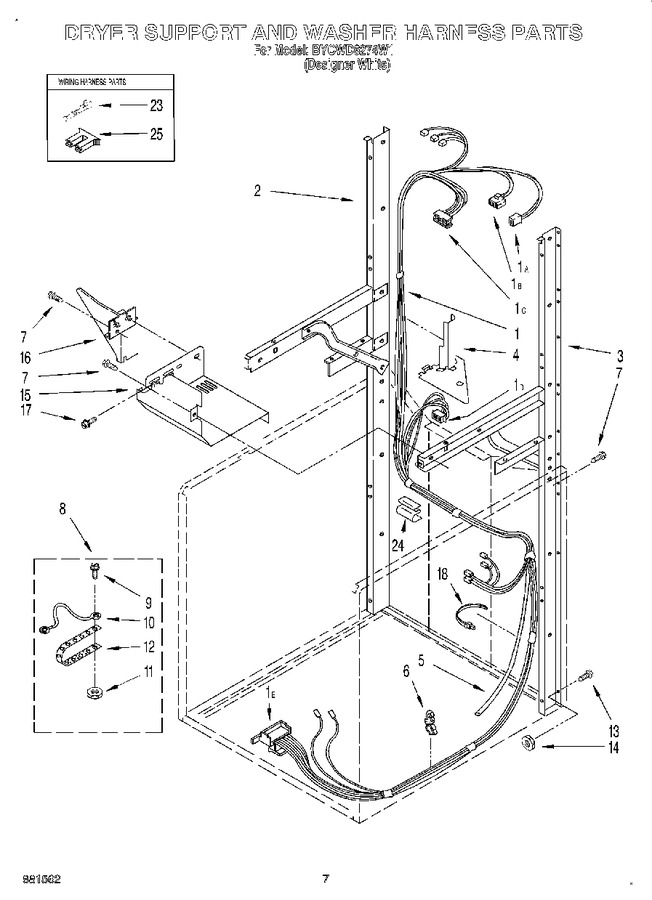

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3396693 | Harness - Washer |
|
- | |||||
| 2 | 3388851 | Channel Assembly (left Hand Side) |
|
$ 288.73 | |||||
| 3 | 3388850 | Channel Assembly (right Hand Side) |
|
$ 289.31 | |||||
| 4 | 3390609 | Shield, Harness |
|
- | |||||
| 5 | W10834213 | Hose, Pressure Switch (Replaces: 3350124) |
|
Immediately | $ 28.51 | ||||
| 6 | 3390496 | Clip, Harness |
|
- | |||||
| 7 | WP681414 | Screw, 10-16 X 1/2 (6) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 8 | 685463 | Kit, Wire Grounding |
|
- | |||||
| 9 | 3400036 | Screw, 10-24 X 1 |
|
- | |||||
| 10 | 685449 | Wire |
|
- | |||||
| 11 | W10080180 | Nut, Hex (Replaces: 3400902) |
|
$ 12.13 | |||||
| 12 | 22965 | Strap, Grounding |
|
- | |||||
| 13 | 3400300 | Bolt, 5/16-18 X 1/2 (4) |
|
- | |||||
| 14 | 3393930 | Nut, Hex (4) |
|
- | |||||
| 15 | W11108181 | Shield, Front (Replaces: 3394350) |
|
$ 64.83 | |||||
| 16 | 3390336 | Shield, Thermostat |
|
- | |||||
| 17 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 18 | 3391249 | Clip, Harness (2) |
|
- | |||||
| 23 | 94613 | Terminal, (male) |
|
- | |||||
| 23 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 6.90 | |||||
| 24 | 63523 | Protector, Harness |
|
$ 169.95 | |||||
| 25 | 3354925 | Connector H-pod |
|
- | |||||
| 1a | 3350130 | Plug, 3 Way (uses Terminal 94614) |
|
$ 11.72 | |||||
| 1b | 3347243 | Connector, 5 Way (uses Terminal 352088) |
|
- | |||||
| 1c | W10876590 | Block, Disconnect - Timer (uses Terminal 352088) (Replaces: 352089) |
|
$ 11.48 | |||||
| 1d | 3350211 | Receptacle, 3 Way (uses Terminal 94614) |
|
- | |||||
| 1e | WP62505 | Block, Disconnect (uses Terminal 352088) (Replaces: 62505) |
|
$ 21.35 |
