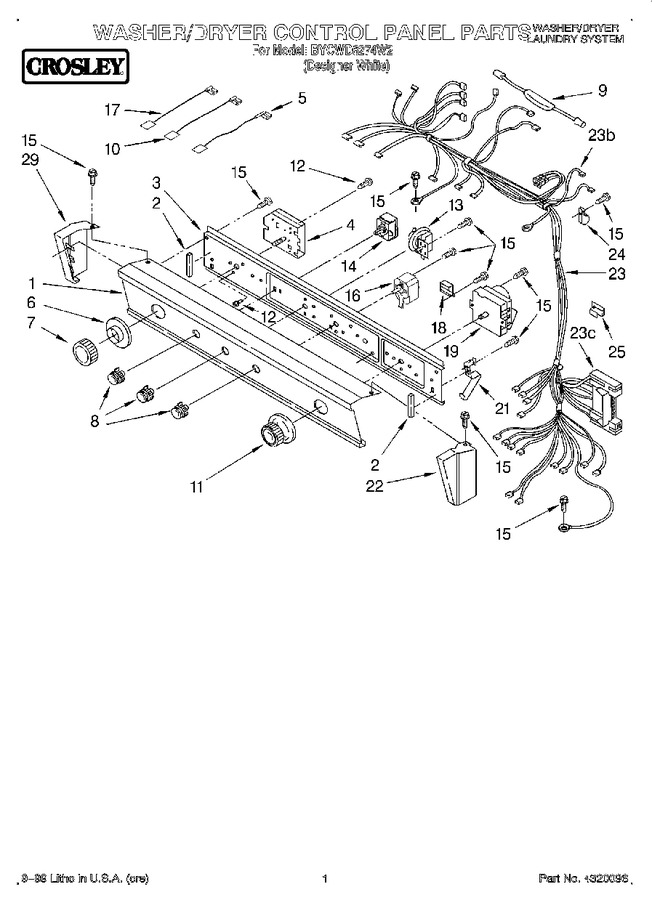

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3406827 | Panel, Control |
|
- | |||||
| 2 | 3390688 | Spacer- Foam Pad (2) |
|
$ 8.13 | |||||
| 3 | 3390689 | Bracket, Control (includes Illus. 2) |
|
- | |||||
| 4 | WP3948357 | Timer, Washer (Replaces: 3948357) |
|
Immediately | $ 285.44 | ||||
| 5 | 3401674 | Jumper, Timer Buzzer |
|
$ 34.37 | |||||
| 6 | 3403097 | Dial (washer) |
|
- | |||||
| 7 | WP3364293 | Knob, Timer (washer) (Replaces: 3364291) |
|
Immediately | $ 53.51 | ||||
| 8 | WP3957796 | Knob, Control (3) (Replaces: 3950759) |
|
Immediately | $ 49.35 | ||||
| 9 | 279872 | Resistor (Replaces: 3401078) |
|
$ 67.45 | |||||
| 10 | 3401684 | Jumper, Wire |
|
$ 34.57 | |||||
| 11 | WP3957750 | Knob, Timer (dryer) (Replaces: 3406146) |
|
Immediately | $ 53.04 | ||||
| 12 | WP356418 | Screw (Replaces: 96435) |
|
$ 7.13 | |||||
| 13 | WP3952466 | Switch, Pressure (Replaces: 3952466) |
|
$ 141.71 | |||||
| 14 | 3405157 | Switch, Temperature |
|
$ 56.97 | |||||
| 15 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.04 | |||||
| 16 | WP3404233 | Switch, Push-to-start (Replaces: 3404233) |
|
Immediately | $ 98.66 | ||||
| 17 | 3393810 | Jumper Wire |
|
- | |||||
| 18 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 114.90 | |||||
| 19 | WP3976569 | Timer, Dryer (Replaces: 3976569) |
|
Immediately | $ 301.94 | ||||
| 21 | 3389453 | Bracket, Hinge (2) |
|
$ 78.06 | |||||
| 22 | 3389456 | End Cap- Right Hand |
|
$ 40.11 | |||||
| 23 | 8299835 | Harness - Dryer |
|
- | |||||
| 24 | 7111P002-60 | Clamp, Harness (Replaces: 3390604) |
|
- | |||||
| 25 | W10134185 | Clip, Harness (2) (Replaces: 3390422) |
|
- | |||||
| 29 | 3389464 | End Cap- Left Hand |
|
$ 26.75 | |||||
| 23B | 2154470 | Receptacle, Power (washer) |
|
- | |||||
| 23C | 3395683 | Connector (motor-dryer) |
|
Immediately | $ 46.67 |
