View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

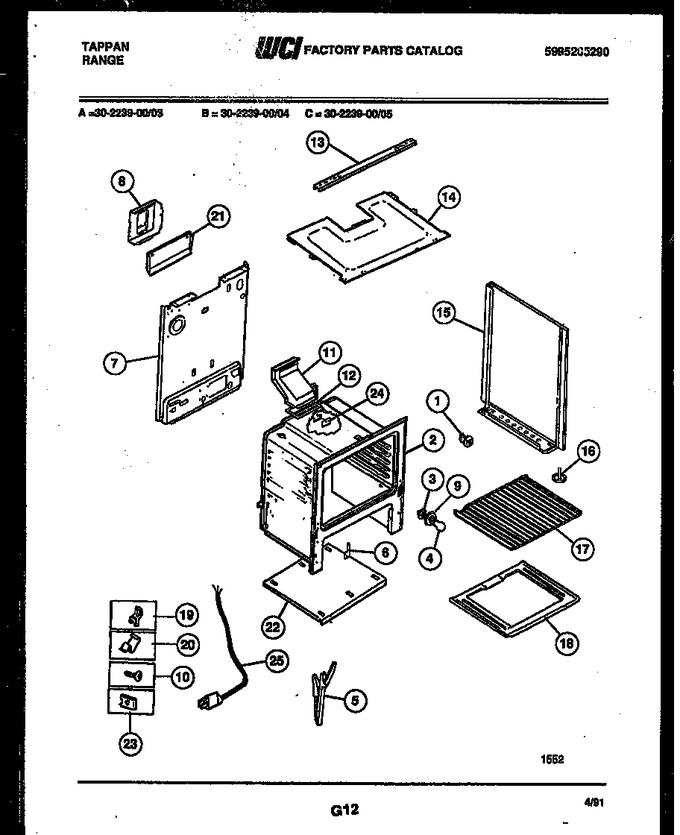

| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 3 | 3014073 | Socket-oven Light |
|
- | |||||
| 4 | 5303208582 | Light Bulb |
|
- | |||||
| 5 | 5303131569 | Channel-door Hinge (2) |
|
- | |||||
| 6 | 3131570 | Cover-hinge Cutout (2) |
|
$ 7.35 | |||||
| 7 | 3203082 | Back-main |
|
- | |||||
| 8 | 3131660 | Shield, Rear Wall |
|
- | |||||
| 9 | 3051511 | Housing-oven Light |
|
$ 60.22 | |||||
| 10 | 316282700 | Screw-oven Bttm (2) (Replaces: 3131732) |
|
$ 9.93 | |||||
| 11 | 3131904 | Flue |
|
- | |||||
| 12 | 08067965 | Gasket-flue |
|
- | |||||
| 13 | 3203441 | Channel-burner Box |
|
- | |||||
| 14 | 3204962 | Burner Box |
|
- | |||||
| 15 | 5303269518 | B/s - Pnl - White - Rh |
|
- | |||||
| 15 | 5303269519 | B/s Pnl-white-rh |
|
- | |||||
| 16 | 3013818 | Screw-leveling (4) |
|
- | |||||
| 17 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 18 | 5303212540 | Bottom, Oven |
|
- | |||||
| 19 | 5303011805 | Clip, Thermo |
|
- | |||||
| 20 | 08067962 | Fstnr, Wire |
|
- | |||||
| 21 | 3131348 | Shield-flue |
|
- | |||||
| 22 | 5303270160 | Base-broil |
|
- | |||||
| 23 | 3203010 | Fstnr-hinge (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 24 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 25 | 5304534377 | Cord, Power (Replaces: 3202006) |
|
$ 26.85 | |||||
| *46792 | 19100180225 | Wiring Diagram-not For Purchase |
|
- | |||||
| 18A | 3017142 | Insulation, Oven Wrap (non-illustrated) |
|
$ 193.50 | |||||
| 18B | 3203541 | Insulation, Oven Back (non-illustrated) |
|
- | |||||
| 19B | 08067961 | Fastener-power Cord |
|
- | |||||
| 21A | 3131903 | Bumper |
|
$ 55.36 | |||||
| 21B | 3014226 | Support - Oven Bttm (non-illustrated) |
|
- | |||||
| 22A | 3934056 | Anti, Tip Bracket (non-illustrated) |
|
- | |||||
| 22B | 3131244 | Cover-power Cord, (non-illustrated) |
|
- | |||||
| 23A | 5303015372 | Cover, Front Main (non-illustrated) |
|
- | |||||
| 24A | 3202799 | Shield-flue, (non-illustrated) |
|
- | |||||
| 24B | 3203455 | Shield-top (non-illustrated) |
|
- |
