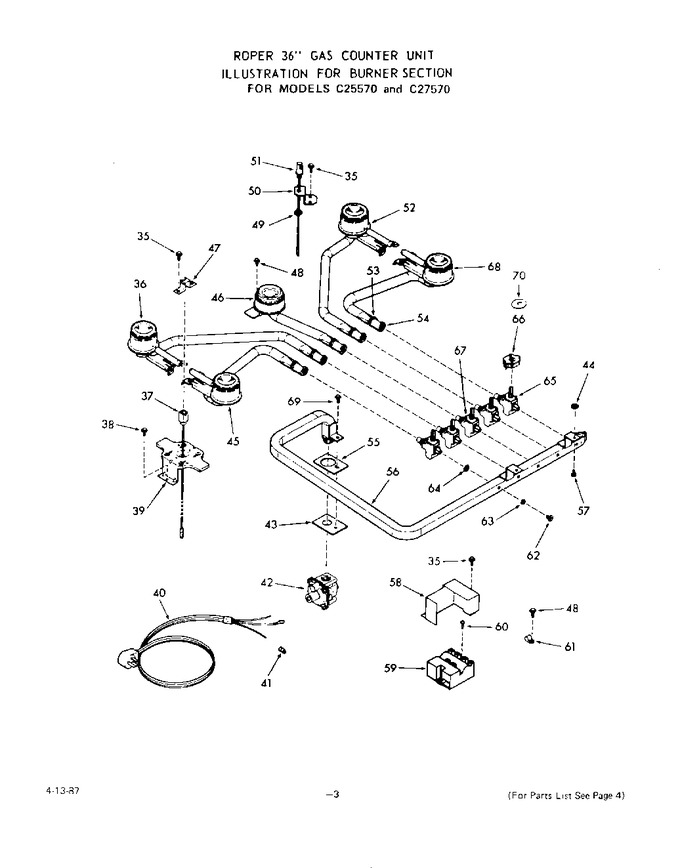

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
36	310301		Top Burner Assembly (lt. Rear)		Appelez-nous	-
37	312455		Left		Appelez-nous	-
37	312454		Right		Appelez-nous	-
38	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
39	311501		Left		Appelez-nous	-
39	310290		Right		Appelez-nous	-
40	309854		Cord W/plug		Appelez-nous	-
41	66763		Small			Immediately	$ 662.32
41	85493		Large		Appelez-nous	-
42	324529		Pressure Regulator		Appelez-nous	-
43	312735		Seal-manifold		Appelez-nous	-
44	239764		Nut 8-32		Appelez-nous	-
45	310303		Top Burner Assembly (lt. Front)		Appelez-nous	-
46	310305		C25570 Models		Appelez-nous	-
46	329757		C27570 Models		Appelez-nous	-
47	312453		Bracket-spark Igniter (lt. Or Rt.)		Appelez-nous	-
48	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
49	304281		Nut - C25570 Models		Appelez-nous	-
50	309996		C25570 Models		Appelez-nous	-
50	325558		C27570 Models		Appelez-nous	-
51	321929		C25570 Models		Appelez-nous	-
51	312598		C27570 Models		Appelez-nous	-
52	310300		Top Burner Asm. (rt. Rear)		Appelez-nous	-
53	301911		Adjustment Screw-air Shutter		Appelez-nous	-
54	301910		Air Shutter		Appelez-nous	-
55	312736		Retainer-manifold Seal		Appelez-nous	-
56	323389		C27570 Models		Appelez-nous	-
56	323395		C25570 Models		Appelez-nous	-
57	238833		Screw 8-32 X 3/8``		Appelez-nous	-
58	325855		Wire Cover-module		Appelez-nous	-
59	321965		C27570 Models		Appelez-nous	-
59	320990		C25570 Models		Appelez-nous	-
60	327621		Screw 6-20x3/8``		Appelez-nous	-
61	109266		Clamp-nylon		Appelez-nous	-
62	311455		C27570 Models		Appelez-nous	-
63	304241		C27570 Models		Appelez-nous	-
64	313563		C27570 Models		Appelez-nous	-
65	313224		Gas Valve (4 Req)		Appelez-nous	-
66	311389		C27570 Models		Appelez-nous	-
67	315190		Gas Valve-griddle-c27570 Models		Appelez-nous	-
68	310302		Top Burner Asm. (rt. Front)		Appelez-nous	-
69	102430		Screw 10 - 32 X 3/8``		Appelez-nous	-
70	313143		C27570 Models (1 Req) Valve Switches To Cord W/plug (black)		Appelez-nous	-
70	314236		C25570 Models (1 Req)		Appelez-nous	-
70	313144		C27570 Models (1 Req) Spark Igniter Module To Cord W/plug (grn)		Appelez-nous	-
70	310032		C27570 Models (1 Req)		Appelez-nous	-
70	321995		C27570 Models (1 Req) Valve Switches To Spark Igniter Module (yellow)		Appelez-nous	-
70	310030		C25570 Models (1 Req)		Appelez-nous	-
70	314235		C25570 Models (1 Req)		Appelez-nous	-
70	306589		C27570 Models		Appelez-nous	-
