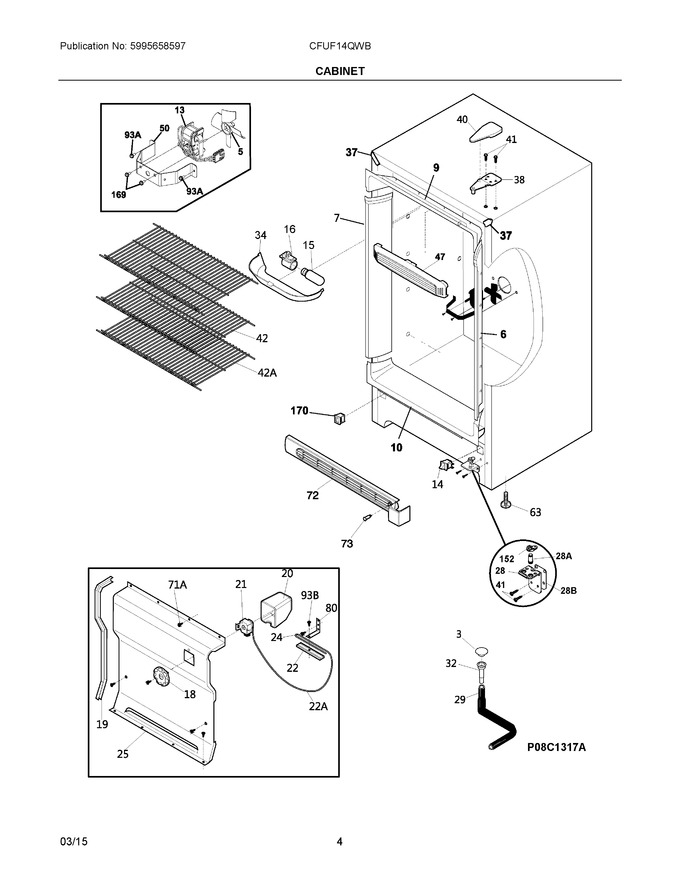

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297437300		Fan Blade				$ 7.46
6	297435603		Breaker, U12/u14, No Lock		Appelez-nous	-
7	297435602		Breaker, U12/u14, W/lock		Appelez-nous	-
9	297381501		Breaker, Top				$ 48.91
10	297381502		Breaker, Bottom		Appelez-nous	-
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 55.32
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Light, Led   (Replaces: 5304495326)			Immediately	$ 73.06
16	297139501		Socket, Light/lamp, 25 W				$ 19.52
18	216707200		Knob, Temp Control				$ 44.10
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
20	216967201		Cover, Temp Control				$ 15.18
21	5304513033		Control-temperature   (Replaces: 297216037)			Immediately	$ 83.14
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
25	297442700		Cover, Evaporator		Appelez-nous	-
26	297415900		Ramp, Door Closer			Immediately	$ 24.74
28	297416301		Hinge, Reversible, Bottom Rh				$ 15.18
29	5304510365		Hose-drain   (Replaces: 216313504)				$ 13.01
32	5304511843		Drain   (Replaces: 297382000)				$ 13.74
34	297184400		Shield-light				$ 21.16
37	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164400		Cover-hinge, White				$ 12.65
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	297441904		Shelf, Wire				$ 93.98
47	297192903		Baffle, Air   (Replaces: 297192900)			Immediately	$ 25.31
50	216394050		Bracket, Fan Motor Mount				$ 22.75
59	5304497655		Basket				$ 120.28
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297387806		Grille, W/signal Light   (Replaces: 297387802)				$ 63.79
73	5304495394		Light Signal, Round, Green			Immediately	$ 28.20
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
152	5304511026		Closer, Bearing Hinge   (Replaces: 297416000)			Immediately	$ 10.13
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280400		Valve, Breather				$ 10.13
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 60.96
28A	297438300		Pin, Bottom Hinge				$ 7.23
42A	5304528978		Shelf, Wire   (Replaces: 297441903)				$ 96.16
59A	216486500		Stop-basket, (2)				$ 20.58
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
NI	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	5304495445		Energy Guide		Appelez-nous	-
NI	5304498525		Service Data Sheet		Appelez-nous	-
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
