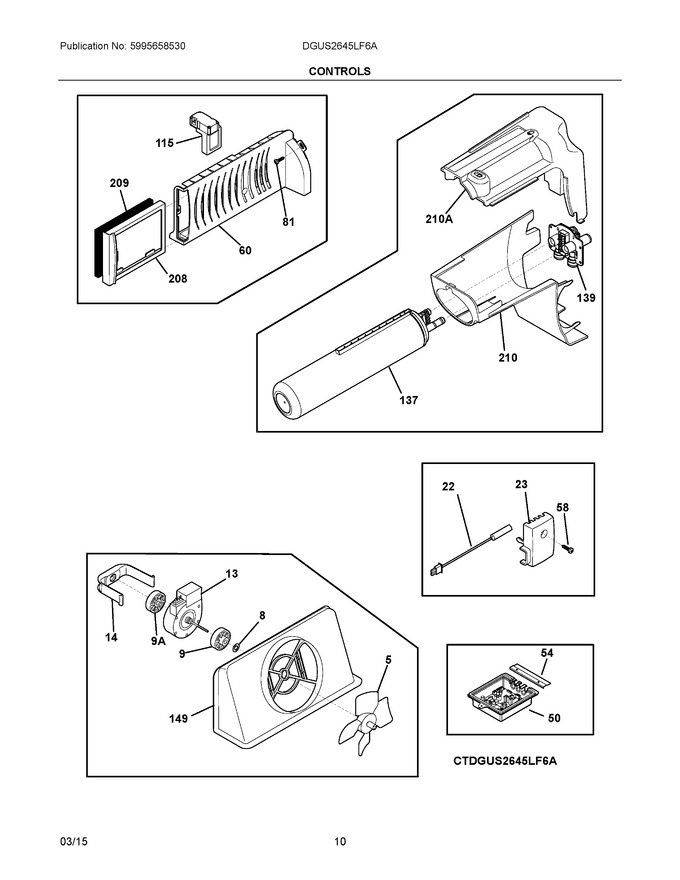

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241563601 | Bushing-motor Mtg |
|
Immediately | $ 17.72 | ||||
| 13 | 809069220 | Motor, Evaporator Fan (Replaces: 241509402) |
|
Immediately | $ 154.14 | ||||
| 14 | 242135301 | Clip, Evap Fan Motor, Evap Fan Motor |
|
$ 7.79 | |||||
| 22 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 23 | 241845401 | Housing-sensor |
|
- | |||||
| 50 | 5304499076 | Board-main Power |
|
Immediately | $ 290.46 | ||||
| 54 | 241532401 | Channel |
|
$ 30.47 | |||||
| 58 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 60 | 242010601 | Housing-diffuser & Air Filter |
|
$ 68.46 | |||||
| 81 | 218843801 | Screw, Hx Wshr Hd Sems, 8-15a X 0.625 (Replaces: 5304455658) |
|
$ 14.41 | |||||
| 115 | 241853801 | Damper Assy, W/seal |
|
$ 157.35 | |||||
| 137 | WF3CB | Filter-water, Carbon (Replaces: 242069601) |
|
Immediately | $ 88.23 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 33.14 | ||||
| 149 | 241563501 | Shroud-fan Orfice |
|
- | |||||
| 208 | 241754301 | Sleeve, Air Filter, Front |
|
$ 38.28 | |||||
| 209 | EAFCBF | Filter, Air (Replaces: 242047801) |
|
Immediately | $ 27.64 | ||||
| 210 | 241983814 | Housing-water Filtr (Replaces: 241983803) |
|
$ 74.42 | |||||
| 210A | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 14.41 | |||||
| 9A | 241845301 | Bushing-motor Mtg |
|
$ 22.68 | |||||
| NI | 241852501 | Clip, Wiring Harness |
|
$ 15.60 | |||||
| NI | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 | |||||
| NI | 5304535377 | Tape, Aluminum, 3" Wide (Replaces: 240570304) |
|
$ 31.36 | |||||
| NIA | 241794401 | Diffuser-air |
|
$ 25.94 | |||||
| NIA | 241867901 | Harness-wiring |
|
$ 170.68 | |||||
| NIA | 241528306 | Seal, Shroud |
|
- | |||||
| NIB | 241945101 | Insulation-air Duct |
|
$ 19.85 |
