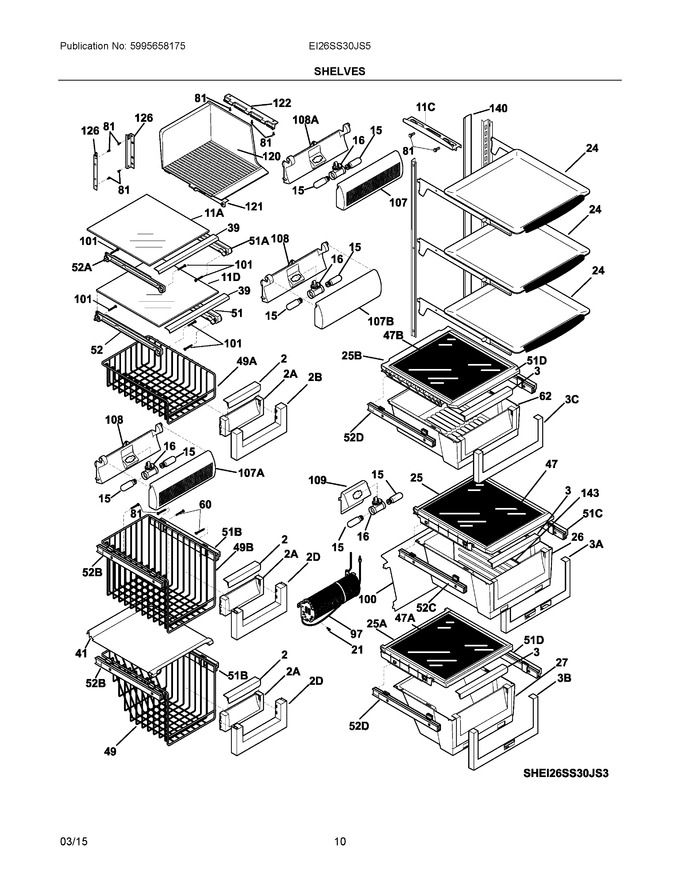

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241741301		Trim-basket				$ 55.99
3	241950801		Handle-crisper Pan, Silver				$ 58.59
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	241622802		Socket-light, Frz Light				$ 65.93
21	218843801		Screw, Hx Wshr Hd Sems, 8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240350144		Shelf, Spill-safe, Sliding		Appelez-nous	-
25	241745501		Cover-crisper Pan, Upper				$ 61.61
26	241745604		Pan-crisper, Upper, W/divi Retainer		Appelez-nous	-
27	241950502		Pan-crisper, Lower				$ 229.64
39	240367602		Trim-shelf, Front				$ 45.36
41	241855801		Baffle-air				$ 72.30
47	240350649		Insert-pan Cover, Glass			Immediately	$ 123.89
49	241743601		Basket-sliding				$ 180.65
51	241799601		Hanger-basket, Rh				$ 41.72
52	241799701		Hanger-basket, Lh				$ 34.02
60	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 12.05
62	241784101		Pan-meat				$ 210.55
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
97	241532006		Water Tank				$ 130.41
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
107	241753601		Shield-light, Upper				$ 30.91
108	241513301		Cover-wiring, Meat Pan Light				$ 64.17
109	241513202		Base-crisper Light Socket				$ 65.21
120	241740801		Shelf-ice Cream				$ 60.06
121	241561001		Rail-ice Cream Shelf, Lh				$ 101.63
122	241692001		Rail-ice Cream Shelf, Lh				$ 85.69
126	241674401		Channel, Auger Mtg, Lh				$ 47.48
140	241812501		Channel, Wtr Tube Cover		Appelez-nous	-
143	241746001		Divider-crisper Pan				$ 51.50
107A	241521802		Shield-light, Frzr				$ 31.38
107B	241513402		Shield-light, Meat Pan				$ 59.90
108A	241753701		Housing-light, Upper, Fresh Food				$ 22.58
11A	240350604		Shelf-freezer, Glass, Upper				$ 114.52
11C	240324101		Shelf-pizza				$ 59.91
11D	240350605		Shelf-freezer, Glass, Lower				$ 106.93
126A	241674402		Channel, Auger Mtg, Rh				$ 43.24
25A	241747101		Cover-crisper Pan, Lower				$ 65.36
25B	241748301		Cover-meat Pan				$ 64.94
2A	241741601		Trim-basket, Front				$ 41.11
2B	241741701		Trim-basket		Appelez-nous	-
2D	241741702		Trim-basket W/knockout		Appelez-nous	-
3A	5303918369		Trim-crisper, W/hum Cntl&btn				$ 92.45
3B	5303918370		Trim-crisper, W/hum Cntl&btn				$ 83.27
3C	241748601		Trim-meat Pan				$ 29.07
47A	240350603		Insert-pan Cover, Glass			Immediately	$ 115.52
47B	240443381		Insert-pan Cover, Glass				$ 119.79
49A	241741801		Basket-sliding, Upper, Half		Appelez-nous	-
49B	241743401		Basket-sliding, Upper, Full				$ 153.62
51A	240395502		Hanger-basket, Rh				$ 73.00
51B	241809101		Hanger-basket, Rh				$ 187.82
51C	240579821		Hanger-basket, 13.00, Rh   (Replaces: 240579807)			Immediately	$ 125.45
51D	240579822		Hanger-basket, 10.19, Rh   (Replaces: 240579808)				$ 102.06
52A	240395602		Hanger-basket, Lh				$ 61.66
52B	241809102		Hanger-basket, Lh				$ 158.05
52C	240579819		Hanger-basket, 13.00, Lh   (Replaces: 240579805)				$ 113.00
52D	240579820		Hanger-basket, 10.19, Lh   (Replaces: 240579806)				$ 100.65
NI	241938101		Screw, Truss Hd, 8-8ab X 1 3/4		Appelez-nous	-
NI	242110268		Energy Guide		Appelez-nous	-
NIA	241510802		Harness-wiring, Frz Light				$ 41.81
NIB	241797601		Harness-wiring		Appelez-nous	-
NIBA	297049500		Clip-slide, Basket			Immediately	$ 20.56
NICA	241563901		Clip-slide, Pan-crisper, Rear				$ 35.81
NICB	241564001		Clip-slide, Pan-crisper, Front		Appelez-nous	-
