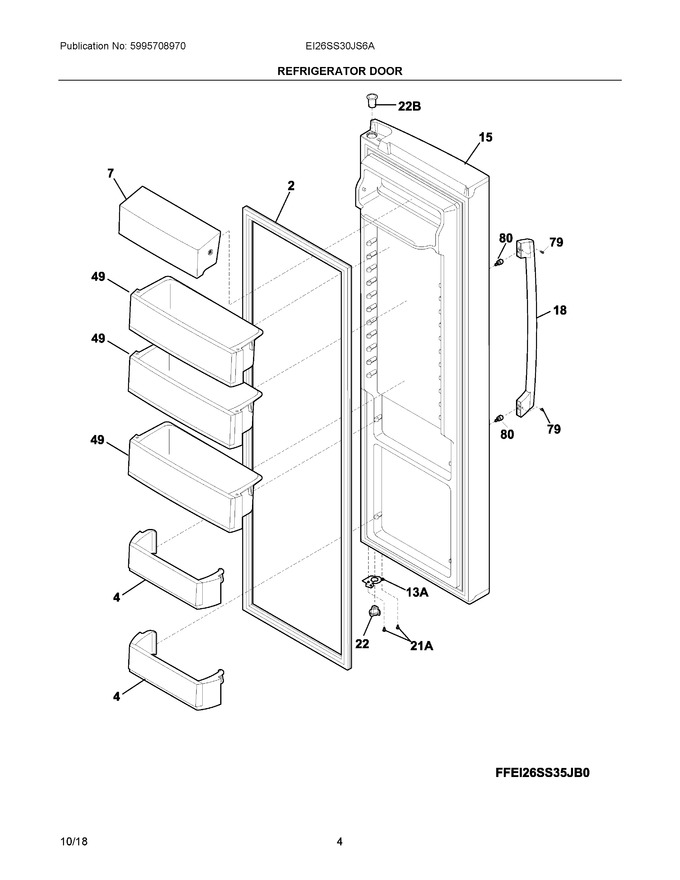

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786013 | Gasket-refr Door, Grey, Magnetic (Replaces: 241786009) |
|
$ 95.90 | |||||
| 4 | 241751101 | Bin-door, 2-liter |
|
$ 94.98 | |||||
| 7 | 241853401 | Door-dairy |
|
$ 57.17 | |||||
| 15 | 242038876 | Door-refr, Stainless, Complete Assy |
|
$ 631.94 | |||||
| 18 | 241881304 | Handle-refr Door, Stainless |
|
$ 263.66 | |||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.09 | |||||
| 49 | 241749902 | Bin-door, Gallon |
|
$ 117.81 | |||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 241990201 | Door Stop, Black, Ref |
|
$ 21.27 | |||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760403 | Bearing, Hinge, Top |
|
Immediately | $ 19.13 | ||||
| NIA | 241601002 | Wrench, Allen |
|
- | |||||
| NIB | 241701902 | Screwdriver, Hex, 3/32", Ball Driver |
|
$ 19.85 |
