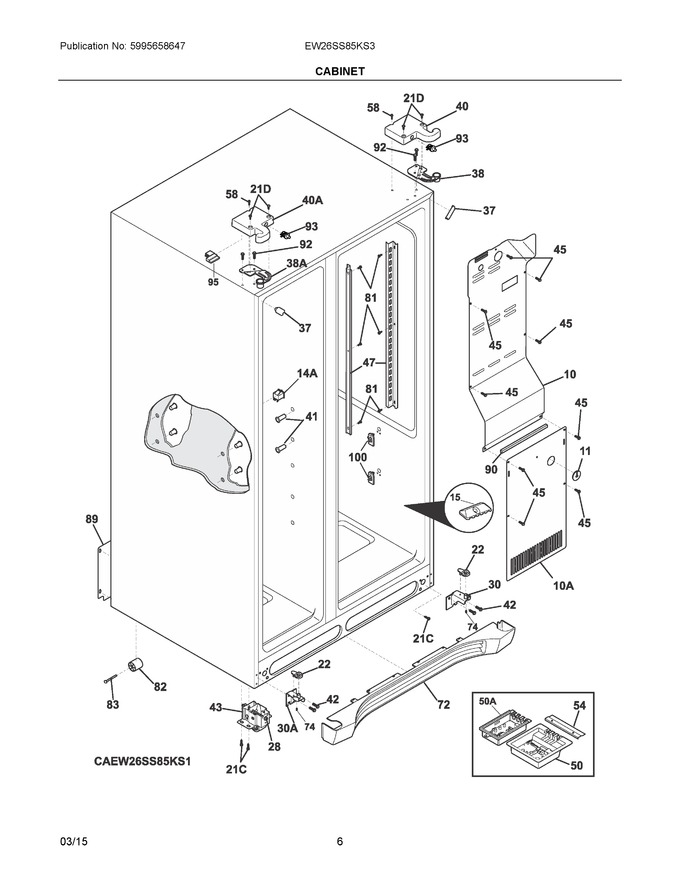

04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	240435914		Cover-air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
15	241891104		Light-led		Appelez-nous	-
22	241917801		Plate-door Closer				$ 7.09
28	5304499445		Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special   (Replaces: 240335502)			Immediately	$ 31.33
30	241918001		Bracket-lower Hinge (rh) (w/hinge Pin)   (Replaces: 241917901)				$ 65.92
37	242161206		Trim-cabinet Corner (gray) (2)   (Replaces: 240337616)				$ 10.62
38	241761301		Bracket-upper Hinge (rh)				$ 66.25
40	241946709		Cover-upper Hinge (gray) (rh)				$ 66.01
41	241550801		Grommet-shelf Mtg, 1.40" Long				$ 63.70
42	240578902		Screw, Hex Head, 1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy, Front, (2)   (Replaces: 240335006)			Immediately	$ 31.33
45	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 4.55
47	241513002		Channel-shelf Mtg, Side, (2)		Appelez-nous	-
50	242115201		Board-main Power		Appelez-nous	-
54	241532401		Channel				$ 30.47
58	241548003		Screw, 10-32 X 3/8				$ 3.03
72	241758708		Grille/kickplate, Grey				$ 127.73
74	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
82	5304418225		Roller, Compressor Base, Rear, (2)				$ 51.57
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
89	5304520905		Cover-access, W/label   (Replaces: 241733905)			Immediately	$ 74.03
90	218249808		Seal-coil Cover		Appelez-nous	-
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 13.46
93	241911710		Switch-light, Grey, (2)   (Replaces: 241911705)				$ 10.62
95	241530501		Sensor, Humidity				$ 121.19
100	242177401		Support-crisper Cvr		Appelez-nous	-
10A	241719711		Cover-evap Coil, Lower				$ 105.80
14A	241547902		Switch-light/lamp, Frzr Door   (Replaces: 241547901)			Immediately	$ 23.25
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
21D	218781101		Screw, Pan Head, 8-18 X 0.625				$ 15.60
30A	241917902		Bracket-lower Hinge (lh) (w/hinge Pin)		Appelez-nous	-
38A	241761302		Bracket-upper Hinge (lh)				$ 64.49
40A	242168904		Cover-upper Hinge, Silver Metallic		Appelez-nous	-
50A	241891611		Board-main, Led				$ 283.45
NI	241968205		Air Duct Assy, Meat Keeper		Appelez-nous	-
NI	241890601		Louver, Air Supply, Crisper				$ 15.60
NIA	242177301		Support-crisper Cvr		Appelez-nous	-
NIA	241550701		Grommet-shelf Mtg, .96" Long				$ 18.20
NIA	241852502		Clip, Retainer, Harness		Appelez-nous	-
NIA	242150001		Harness-wiring, Jumper, Hum.sensor		Appelez-nous	-
NIA	241835801		Harness-wiring, Refrigerator				$ 18.20
NIAA	241852501		Clip, Wiring Harness				$ 15.60
NIAA	241891901		Harness-wiring, Freezer		Appelez-nous	-
NIB	242036802		Clip, Plastic		Appelez-nous	-
