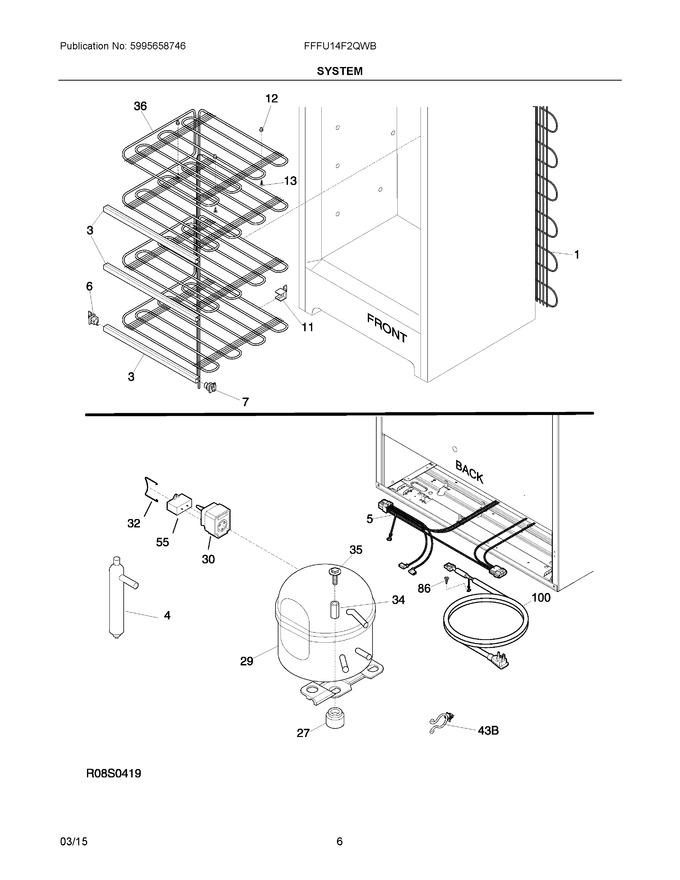

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 297396820)			Immediately	$ 31.67
5	5304496631		Harness, W/sig Lt				$ 86.48
14	5304496687		Heater-defrost				$ 97.81
15	297414800		Evaporator				$ 145.30
18	297078701		Insulator-evap, Styrofoam, Rh				$ 3.62
19	297078801		Insulator-evap, Styrofoam, Lh				$ 3.62
23	5304518034		Timer, Defrost, 115v, Tab   (Replaces: 297318010)			Immediately	$ 57.55
27	216498900		Grommet, Compressor   (Replaces: 5308002681)				$ 13.01
27	216498900		Grommet, Compressor   (Replaces: 297293302)				$ 13.01
29	297270401		Compressor, W/o Electricals		Appelez-nous	-
30	216954222		Controller				$ 85.05
32	216649200		Clip, Controller				$ 6.30
34	5306594529		Sleeve-compressor				$ 10.34
35	297368500		Bolt, Compressor		Appelez-nous	-
55	297286812		Capacitor-run, 250 Va, 12 Mf   (Replaces: 297286802)			Immediately	$ 11.78
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
100	297366805		Cord, Power   (Replaces: 297366804)				$ 68.68
130	297244700		Support, Evaporator Mtg				$ 4.26
15A	297348600		Heat Exchanger				$ 120.74
31A	297272100		Pan-drain				$ 29.51
43B	297315800		Clip, Wire				$ 10.13
NI	297102800		Spacer-tube		Appelez-nous	-
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NIA	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
