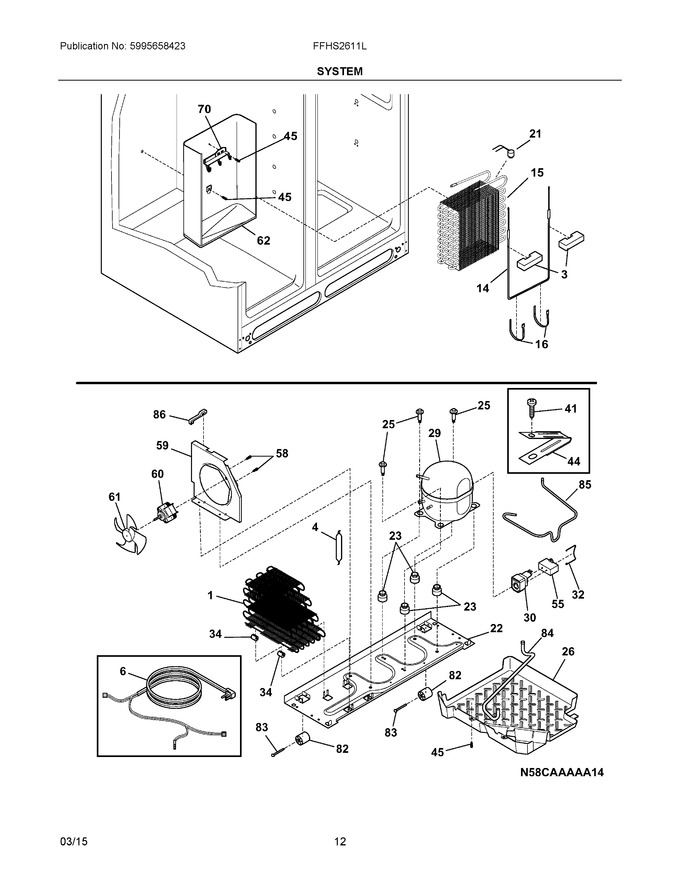

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242106605 | Condenser |
|
$ 196.33 | |||||
| 3 | 218679614 | Block-evap Coil, Styrofoam, (2) (Replaces: 218679607) |
|
$ 19.85 | |||||
| 4 | 5303305677 | Dryer-filter (Replaces: 242047603) |
|
Immediately | $ 31.67 | ||||
| 6 | 241586801 | Harness-wiring, Machine Compt, W/diodes |
|
$ 177.08 | |||||
| 14 | 242044113 | Heater-defrost (Replaces: 240316107) |
|
Immediately | $ 103.72 | ||||
| 15 | 5303918284 | Evaporator Kit |
|
$ 481.01 | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 21 | 5303918214 | Thermostat-defrost, Kit |
|
Immediately | $ 33.42 | ||||
| 22 | 240330012 | Base-compressor |
|
$ 133.73 | |||||
| 23 | 218513300 | Grommet-compr Mtg, (4) |
|
$ 42.53 | |||||
| 25 | 240491503 | Screw-compressor Mtg, 1/4-28 X 1.16, (4) |
|
$ 13.95 | |||||
| 26 | 241697603 | Pan-defrost (Replaces: 241697602) |
|
$ 79.22 | |||||
| 29 | 5304524545 | Compressor & Grommets, W/o Electricals (Replaces: 241650212) |
|
$ 502.97 | |||||
| 30 | 297259515 | Controller, Compressor (Replaces: 297259510) |
|
$ 74.42 | |||||
| 32 | 216954300 | Clip, Controller |
|
$ 17.01 | |||||
| 34 | 240405201 | Grommet, Rubber, Black, Cond Tube/wire |
|
$ 19.85 | |||||
| 41 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 44 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 55 | 297286803 | Capacitor, Run, 220 Vac, 15 Microfarad (Replaces: 218909915) |
|
Immediately | $ 28.77 | ||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 58 | 241953902 | Screw, Hex Washer Head, 8-18 X 3/8 (Replaces: 240433203) |
|
Immediately | $ 17.11 | ||||
| 59 | 241946105 | Shroud-cond Fan (Replaces: 240315502) |
|
$ 26.23 | |||||
| 60 | 242018301 | Motor-condenser Fan |
|
Immediately | $ 138.56 | ||||
| 60 | 297279500 | Motor-condenser Fan (Replaces: 241584301) |
|
Immediately | $ 141.66 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 62 | 5304481642 | Trough-drain (Replaces: 240429402) |
|
$ 327.07 | |||||
| 70 | 218990801 | Bracket-evap/cvr Mtg |
|
$ 63.79 | |||||
| 82 | 5304418225 | Roller, Compressor Base, Rear, (2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 241957901 | Tube-drain, Lower (Replaces: 5304421068) |
|
$ 60.96 | |||||
| 85 | 241856901 | Tube-connector, Suction |
|
$ 78.11 | |||||
| 86 | 240409302 | Spacer-cond Tube, Black |
|
$ 67.49 | |||||
| 59A | 240346501 | Bracket-support, Cond Mtr, (3) |
|
$ 21.97 | |||||
| 59B | 240346601 | Grommet-bracket, (3) |
|
$ 19.24 | |||||
| NI | 5303918328 | Heat Exchanger Kit, Suction Line, Service |
|
$ 367.18 | |||||
| NIA | 240346701 | Tape-foam Seal, Shroud |
|
$ 29.77 | |||||
| NIA | 241651601 | Harness-wiring, Evaporator |
|
$ 122.06 | |||||
| NIA | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| NIB | 240359403 | Screw-fan Shroud, (2) |
|
$ 3.79 |
