SELECT A DIAGRAM

01 - Cover Sheet


02 - Upper Cabinet/drum Heater


03 - Motor/blower/belt

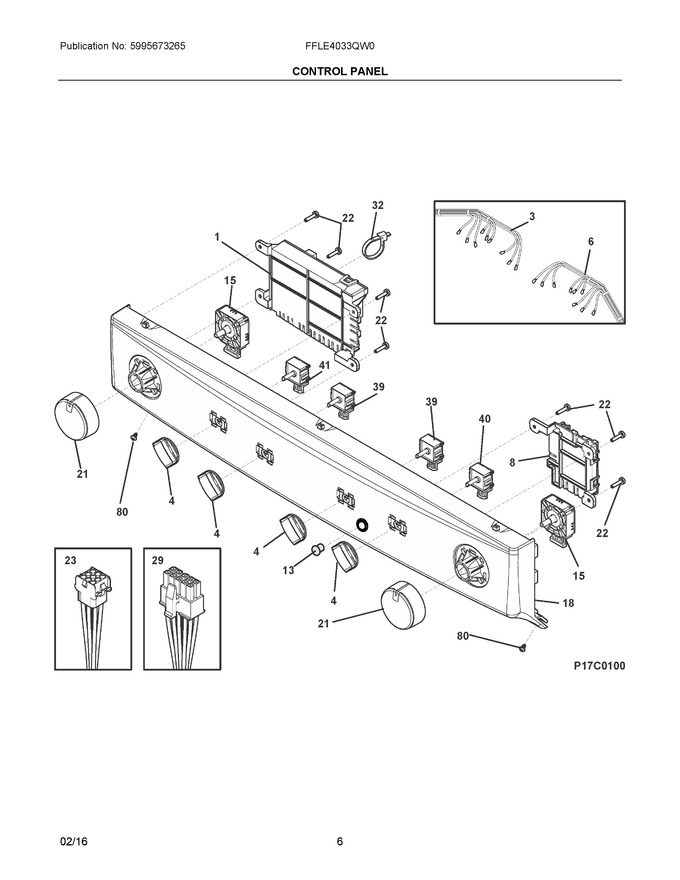

04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304500454		Board, Control Main, W/housing				$ 241.76
3	137329400		Wiring Harness, Dryer, Lc Upper				$ 107.02
4	5304504886		Knob, Switch   (Replaces: 137191300)				$ 68.20
6	5304500474		Harness, Upper Lc Washer				$ 124.03
8	5304500456		Board, Pc W/housing			Immediately	$ 189.97
13	134040800		Switch, On/off, White, Round				$ 65.92
15	137493400		Switch, Pts Cycle Selec, 9 Pos			Immediately	$ 32.38
18	5304500510		Console, Dec Cntl Panel				$ 168.69
21	137489800		Knob, Cycle Selector				$ 50.66
22	134402900		Screw, Phillips, 6-19 X 0.650				$ 29.77
23	5304500522		Harness, Main				$ 186.56
29	5304517938		Wiring Harness, Lc Dryer, Electric   (Replaces: 137418900)				$ 105.54
32	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 10.63
39	137205200		Switch, Rotary, 2 Pos			Immediately	$ 43.24
40	137052700		Switch, Rotary, 5 Pos				$ 48.20
41	137261000		Switch, Rotary, 4 Pos				$ 102.65
80	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
NIA	134101400		Terminal Block, Main			Immediately	$ 55.99

    View Diagram in Separate Window       Print Part List
