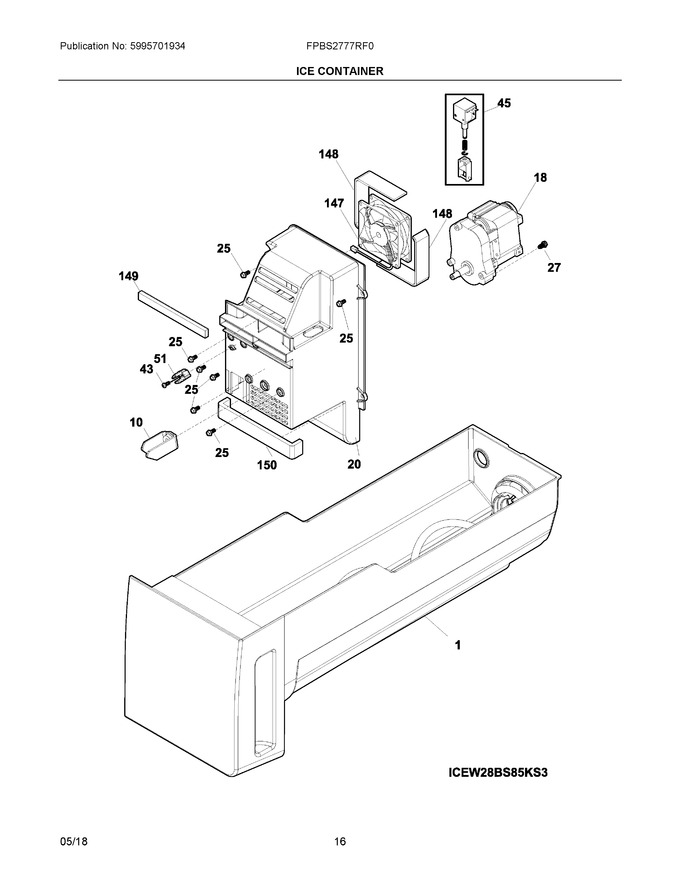

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242093011 | Ice Container Assy, W/moving Parts |
|
$ 243.81 | |||||
| 10 | 241829001 | Bar-drive |
|
$ 58.55 | |||||
| 18 | 241816602 | Motor-auger |
|
Immediately | $ 154.76 | ||||
| 20 | 242095702 | Housing-air Handler, Gen Ii Im |
|
$ 90.01 | |||||
| 25 | 240555002 | Screw, 8-32 X 3/8, Black (Replaces: 240555004) |
|
Immediately | $ 13.46 | ||||
| 27 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 43 | 241641502 | Screw |
|
$ 8.51 | |||||
| 45 | 241675704 | Solenoid Assy, 115v (Replaces: 241675701) |
|
Immediately | $ 65.71 | ||||
| 51 | 242095501 | Pin-anti Twist Bkt Gen Ii Im |
|
Immediately | $ 20.56 | ||||
| 147 | 5304493604 | Fan Assembly, Motor, With Blade (Replaces: 242119401) |
|
Immediately | $ 90.55 | ||||
| 148 | 242095406 | Gasket |
|
Immediately | $ 18.17 | ||||
| 149 | 5303918784 | Gasket-evap Housing, .250x.250x5.250 (Replaces: 242095404) |
|
Immediately | $ 122.75 | ||||
| 150 | 5303918784 | Gasket (Replaces: 242095407) |
|
Immediately | $ 122.75 | ||||
| NIA | 242095806 | Harness-wiring, Air Handler |
|
$ 84.24 | |||||
| NIB | 242095805 | Harness-wiring, Air Handler |
|
$ 82.66 |
