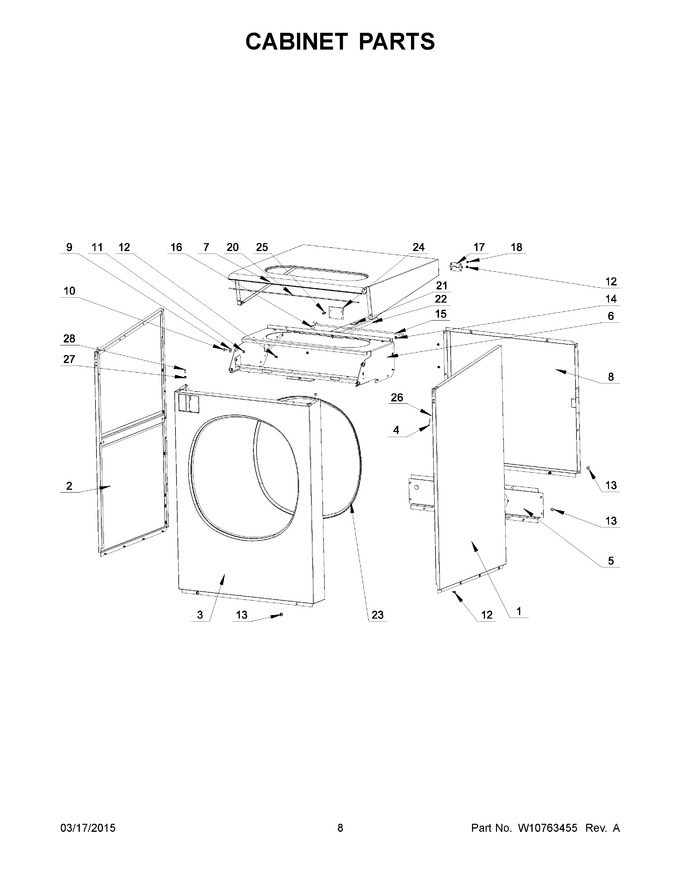

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10712091 | Side Panel - Right (painted) |
|
- | |||||
| 2 | W10712106 | Side Panel - Left (painted) |
|
- | |||||
| 3 | W10712129 | Front Panel - Complete (pd) |
|
- | |||||
| 4 | W10712182 | Bolt M4x25 |
|
- | |||||
| 5 | W10712140 | Rear Cover - Lower, Complete |
|
- | |||||
| 6 | W10712146 | Panel Holder Complete |
|
- | |||||
| 7 | W10712150 | Top Cover - Complete |
|
- | |||||
| 8 | W10712159 | Rear Cover |
|
- | |||||
| 9 | 23003012 | Washer M6 |
|
- | |||||
| 10 | W10712161 | Bolt M6x12 |
|
- | |||||
| 11 | 23001310 | Nut M6 |
|
- | |||||
| 12 | W10711800 | Screw 4x11 |
|
- | |||||
| 13 | W10712163 | Bolt M6x16 |
|
- | |||||
| 14 | 23002424 | Washer M6.4 |
|
- | |||||
| 15 | W10712164 | Prop Rod |
|
- | |||||
| 16 | 23002454 | Self Sticking Cable Clip |
|
- | |||||
| 17 | 23004103 | Hinge |
|
- | |||||
| 18 | W10712165 | Rivet W/crank (8x8) |
|
- | |||||
| 19 | 23002167 | Grommet, Rubber |
|
- | |||||
| 20 | W10286261 | Foam-seal |
|
- | |||||
| 21 | W10712181 | Velcro Fastener |
|
- | |||||
| 22 | W10712176 | Bracket, Top Cover (reinforcement) |
|
- | |||||
| 23 | W10712169 | Edge Protection |
|
- | |||||
| 24 | W10712170 | Auto-unlock Module |
|
- | |||||
| 25 | 23001099 | Pc Board Socket |
|
- | |||||
| 26 | 23002950 | Washer, Lock M4 |
|
- | |||||
| 27 | W10711787 | Insert, Rivet |
|
- | |||||
| 28 | W10711789 | Rivet W/crank (4x16) |
|
- | |||||
| 1A | W10712093 | Side Panel - Right (stainless) |
|
- | |||||
| 2A | W10712107 | Side Panel - Left (stainless) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10712183 | Wiring Harness, Auto-unlock Module |
|
- | |||||
| NI | W10712243 | Parts For Maytag Connect 360 (bolt M4x12) |
|
- | |||||
| NI | 23003666 | Parts For Maytag Connect 360 (nut M4) |
|
- |
