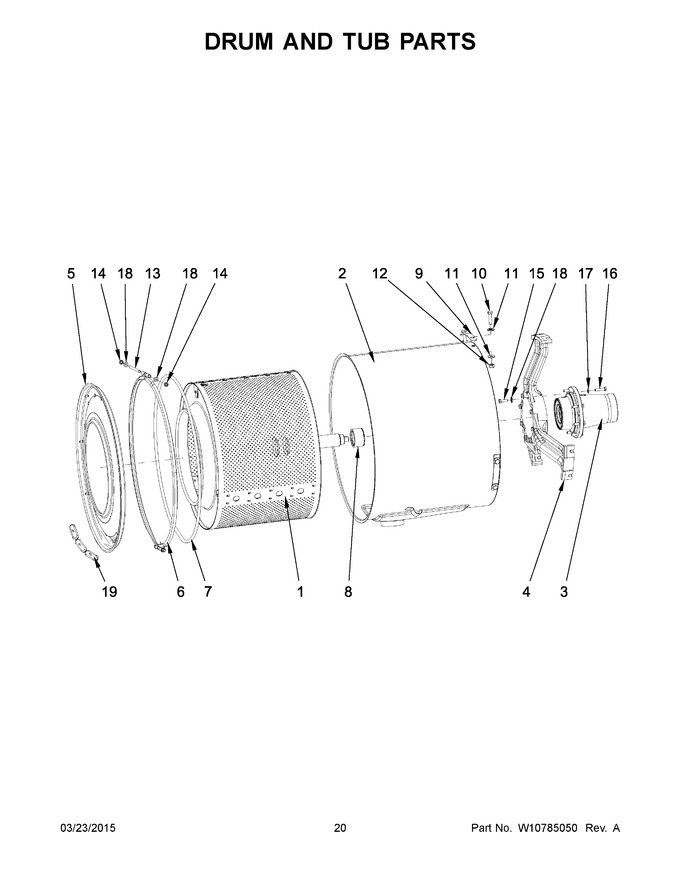

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10713377 | Inner Basket - Complete |
|
- | |||||
| 2 | W10713387 | Outer Tub - Complete |
|
- | |||||
| 3 | W10714046 | Trunnion - Complete |
|
- | |||||
| 4 | W10713400 | Support, Tub |
|
- | |||||
| 5 | W10713407 | Front Tub Panel - Complete |
|
- | |||||
| 6 | W10713411 | Clamp - Complete |
|
- | |||||
| 7 | W10713414 | Seal D10-2100mm |
|
- | |||||
| 8 | W10713945 | Seal Sleeve |
|
- | |||||
| 9 | W10713948 | Bracket, Curved |
|
- | |||||
| 10 | W10304863 | Bolt M10x40 |
|
- | |||||
| 11 | 23002988 | Washer M10 |
|
- | |||||
| 12 | 23001241 | Nut M10 |
|
$ 2,647.47 | |||||
| 13 | 23002486 | Bolt M8 |
|
- | |||||
| 14 | 23002487 | Nut M8 |
|
- | |||||
| 15 | 23003419 | Screw M8x24 |
|
- | |||||
| 16 | 23003765 | Bolt M8x35 |
|
- | |||||
| 17 | 23003769 | Washer M8 |
|
- | |||||
| 18 | 23001608 | Washer M8.4 |
|
- | |||||
| 19 | 23001594 | Heating Element Hole Plug |
|
- |
