01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

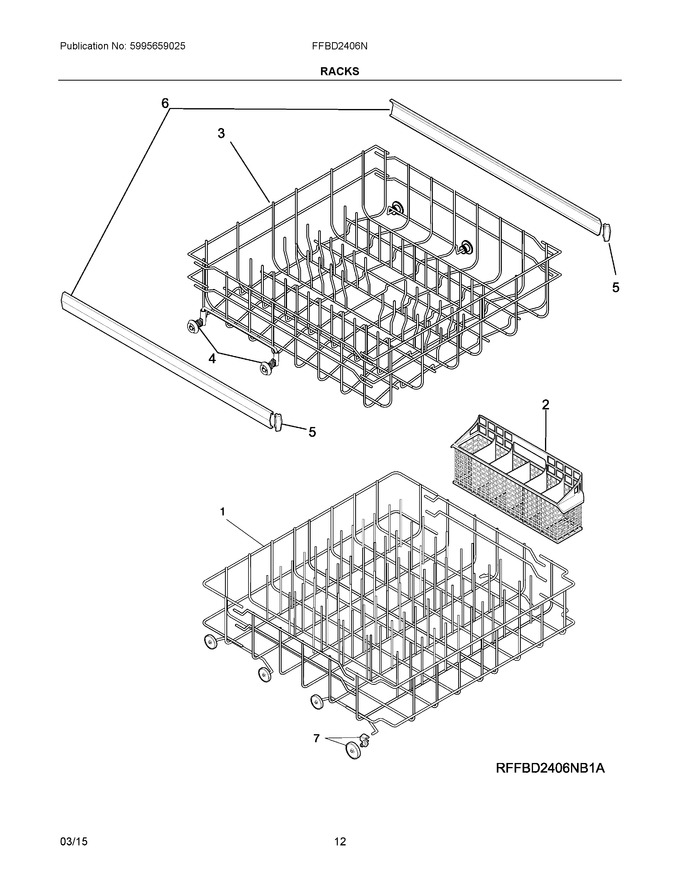

| 1 | 5304533201 | Rack Assembly, Lower, W/rollers (Replaces: 807065401) |
|
$ 158.33 | |||||
| 2 | 5304509753 | Basket, Silverware, White (Replaces: 5304489877) |
|
Immediately | $ 36.87 | ||||
| 3 | 5304535380 | Rack Assembly, Upper (Replaces: 5304498220) |
|
Immediately | $ 150.71 | ||||
| 4 | 154522902 | Wheel & Bushing Assy, Grey, Upper Rack, (8) |
|
$ 39.54 | |||||
| 5 | 5304506510 | Cap, Slide, Grey, (4) (Replaces: 5304440996) |
|
Immediately | $ 7.23 | ||||
| 6 | 154597801 | Slide, Rack, Upper, (2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy, Grey, Lower Rack, (8) (Replaces: 154174503) |
|
Immediately | $ 12.75 | ||||
| NI | 154818702 | Nameplate, Rack Spacer, Grey |
|
$ 11.29 |
