01 - Cover Sheet

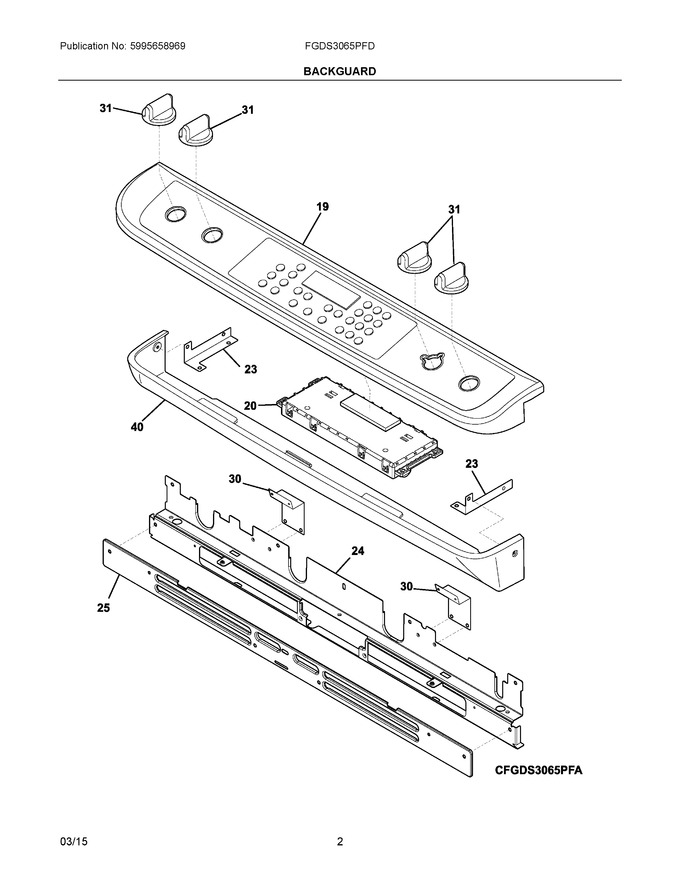

02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 139059421 | Panel Assembly, Control (black/stainless) (Replaces: 139059411) |
|
$ 630.05 | |||||
| 20 | 5304503760 | Controller, Electronic, Es530w6 (Replaces: 5304499642) |
|
$ 363.29 | |||||
| 23 | 318921300 | Bracket, Control Mtg, (2) |
|
$ 17.64 | |||||
| 24 | 139074901 | Frame, Vent Trim, Black |
|
- | |||||
| 25 | 139075001 | Cover, Vent Trim, Black |
|
$ 60.52 | |||||
| 30 | 318928502 | Bracket, Control Panel, Rear, (2) |
|
$ 15.60 | |||||
| 31 | 316564425 | Knob, Control, Stainless |
|
Immediately | $ 156.68 | ||||
| 40 | 318912908 | Panel, Service, Black |
|
$ 262.57 | |||||
| NI | 807633201 | Harness, Wiring, Display |
|
$ 153.09 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 |
