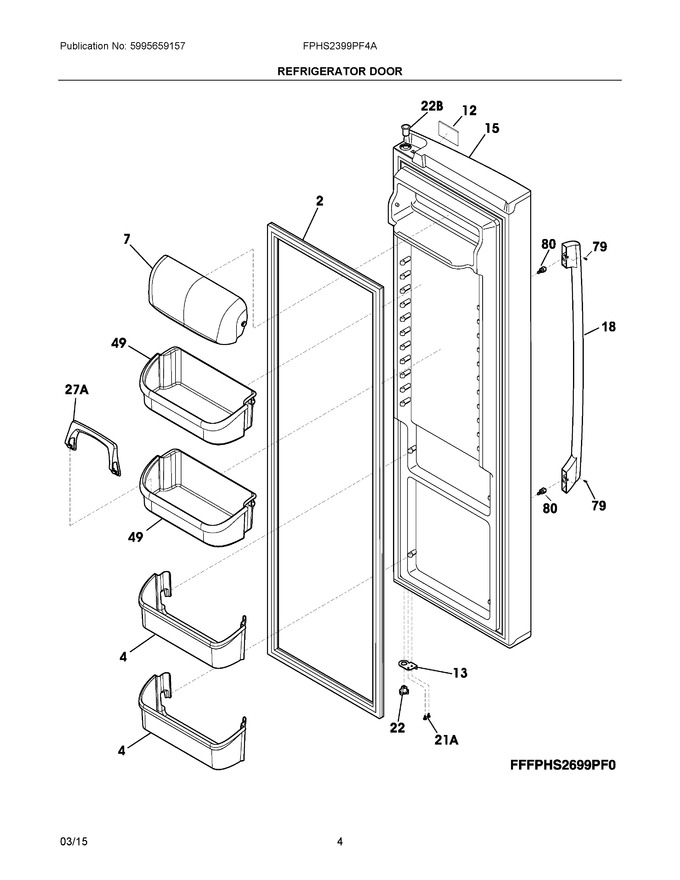

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786015 | Gasket-refr Door, Grey, Magnetic (Replaces: 241786011) |
|
Immediately | $ 94.66 | ||||
| 4 | 240363702 | Bin-door, 2-liter |
|
Immediately | $ 76.40 | ||||
| 7 | 240338313 | Door, Dairy, Clear (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 12 | 242015101 | Nameplate |
|
$ 4.55 | |||||
| 13 | 241990201 | Door Stop, Black, Ref |
|
$ 21.27 | |||||
| 15 | 242178110 | Door-refr, Stainless, Complete |
|
$ 479.85 | |||||
| 18 | 241972501 | Handle-door, Stainless |
|
$ 227.22 | |||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.09 | |||||
| 49 | 240324502 | Bin-door, Gallon, W/trim (Replaces: 241808226) |
|
Immediately | $ 102.61 | ||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 12.76 | |||||
| 27A | 241812702 | Retainer, Tall Bottle |
|
$ 18.38 | |||||
| NIA | 241601002 | Wrench, Allen |
|
- | |||||
| NIA | 241780303 | Liner, Bin, Bin |
|
$ 56.37 |
