SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

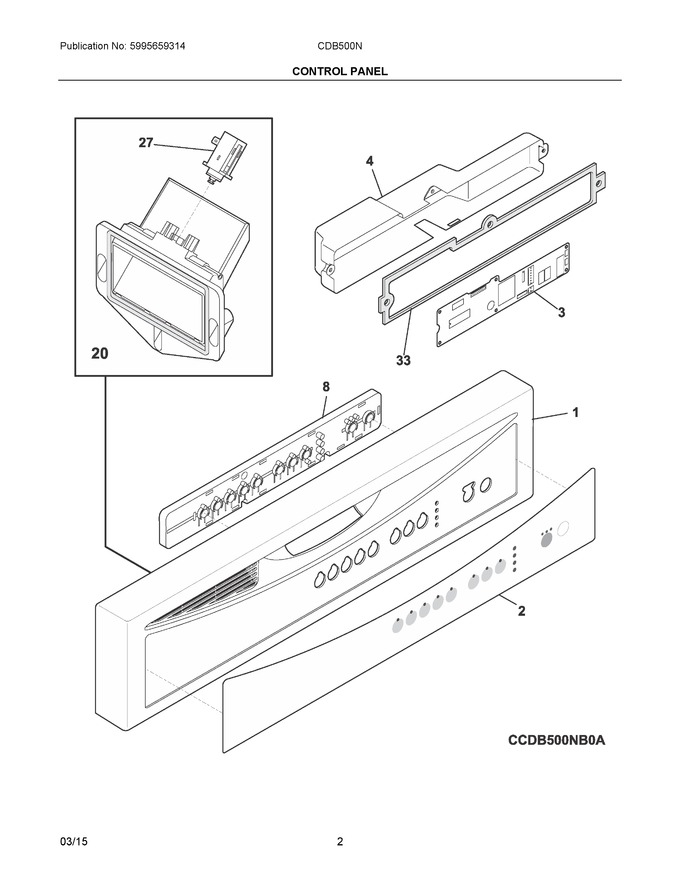

1	154788801		Panel, Console, White, 10 Button				$ 54.92
2	5304488256		Insert, Control Panel, White		Appelez-nous	-
3	5304512731		Board, Control   (Replaces: 5304501595)			Immediately	$ 138.42
4	154552101		Cover, Control				$ 57.17
8	154852501		Switch Assembly, Tactile				$ 145.30
20	154423601		Vent Assy, Active Dry, W/actuator				$ 198.55
27	154433501		Actuator, Active Dry Vent		Appelez-nous	-
33	154553501		Gasket, Cover				$ 42.34
NI	154783101		Screw, Plt, 8-10			Immediately	$ 7.09
NI	808612216		Energy Guide		Appelez-nous	-
NI	154294701		Screw, #7 Plas .375, (6), Disp. Assy.				$ 9.22
NI	808420901		Harness, Wiring, Main		Appelez-nous	-
NIA	154793401		Screw, Dry Duct, (3)				$ 7.09

    View Diagram in Separate Window       Print Part List
