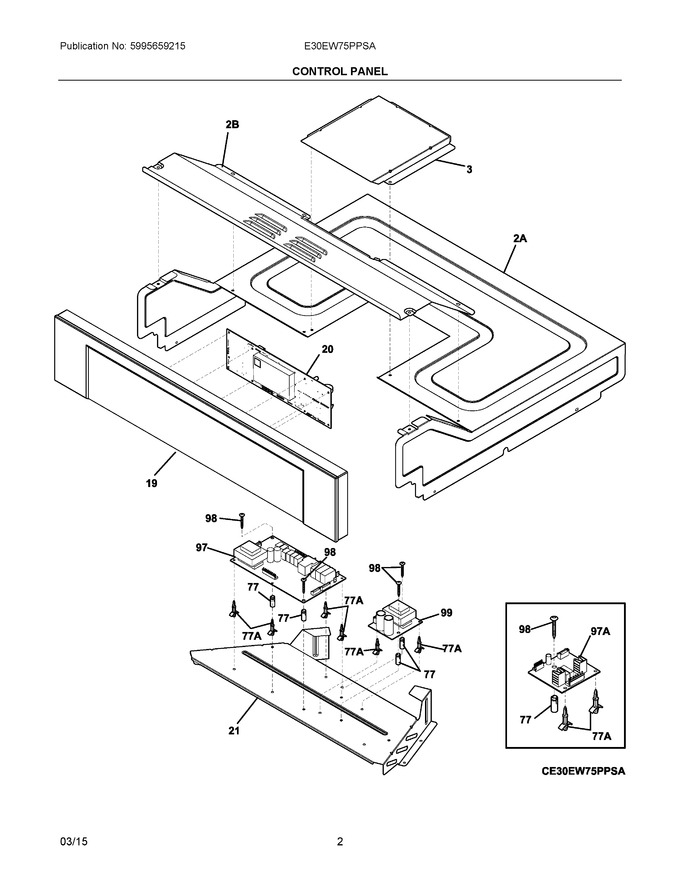

02 - Control Panel


03 - Body


04 - Door


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318577800		Box, Fan Service		Appelez-nous	-
19	139034554		Control Panel, Assembly, Black/stainless				$ 1,738.49
20	316576688		Controller, Electronic, Es630w1   (Replaces: 316576672)				$ 380.65
21	139028000		Bracket, Mounting				$ 63.00
77	316247900		Spacer, Power Board				$ 44.65
97	316443941		Board, Relay				$ 367.70
98	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
99	316535201		Board, Power Supply, 8v				$ 349.42
2A	139017901		Cover, Oven Top				$ 127.56
2B	139017801		Cover, Control Access				$ 59.16
77A	316114100		Spacer				$ 60.96
97A	316519205		Board, Relay, Convection				$ 256.95
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304496650		Harness, Wiring, Communication, & Door Ltch Mtr				$ 178.61
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-
NIA	318165800		Spacer, Glass, Foam				$ 17.72
