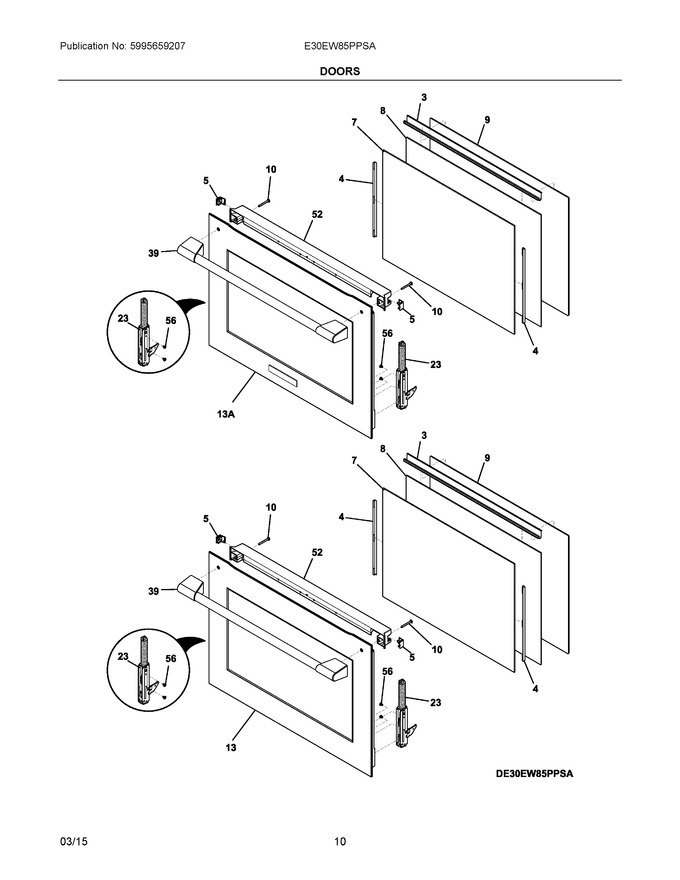

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304491779		Spacer, Door Glass, Top				$ 27.64
4	808983501		Spacer, Door Glass, Silicone, (2)			Immediately	$ 28.96
5	139010800		Cap, Screw Hole, Trim, (2)				$ 16.30
7	139010501		Glass, Thermal, Inner, Hb11 #2   (Replaces: 139010505)				$ 168.69
8	139010500		Glass, Thermal, Inner, Hb11 #1   (Replaces: 139010504)				$ 175.94
9	5304505655		Glass, Door, Inner   (Replaces: 139010402)				$ 480.29
10	316439507		Screw, Handle Mtg., 10-24 X 1.77", (2)				$ 21.97
13	5304496651		Door Assembly, Outer, Steel/glass, Stainless/black, Lower Oven, W/trim				$ 942.43
23	139010306		Hinge, Door, Gold, Dual Spring			Immediately	$ 143.33
39	808992401		Handle, Door, Stainless				$ 293.37
52	5304494448		Trim Assembly, Door, Top				$ 157.74
56	807286001		Screw, 10-32 X 1/4				$ 12.02
13A	807722402		Door Assembly, Outer, Stainless/black, W/trim & Badge				$ 1,178.26
NI	318163602		Cleaner, Stainless Steel				$ 26.51
