01 - Cover Sheet

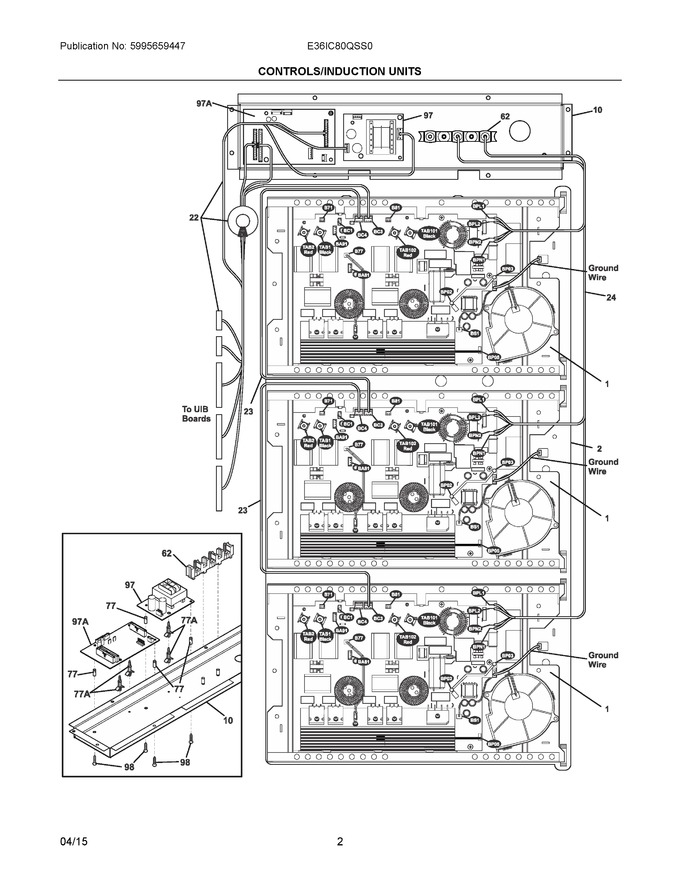

02 - Controls/induction Units
03 - Main Top/surface Units
04 - Wiring Diagram
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 903160-9010 | Housing Assembly, Induction, Generator, W/electronics (Replaces: 318416100) |
|
Immediately | $ 818.43 | ||||
| 2 | 5304499625 | Plate, Generator Mtg. |
|
- | |||||
| 10 | 5304499626 | Box, Power Supply |
|
- | |||||
| 22 | 5304499627 | Harness, Wiring, Communication, W/magnetic Core |
|
$ 218.72 | |||||
| 23 | 318578332 | Harness, Wiring, Communication |
|
Immediately | $ 54.35 | ||||
| 24 | 5304499628 | Harness, Wiring, Power, Genrator Board |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 77 | 316247900 | Spacer, Power Board |
|
$ 44.65 | |||||
| 97 | 316435703 | Board, Power Supply |
|
Immediately | $ 394.48 | ||||
| 98 | 305309608 | Screw, M4 |
|
- | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| 97A | 316578338 | Board, Esec20, Uib |
|
$ 299.10 | |||||
| NI | 5304462994 | Screw, 8-32 X 5/16 |
|
- | |||||
| NI | 5304499631 | Box & Wires Assy |
|
- | |||||
| NI | 318578302 | Harness, Wiring, Jumper |
|
$ 18.43 | |||||
| NI | 5304400192 | Retainer, Wiring |
|
- | |||||
| NIA | 305376201 | Nut, Terminal Block, (2) |
|
- | |||||
| NIB | 5303323140 | Screw, Ground (Replaces: 305452800) |
|
- | |||||
| NIC | 5304468081 | Screw, 6-32 X 3/8", (4) |
|
$ 9.92 |
