SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram

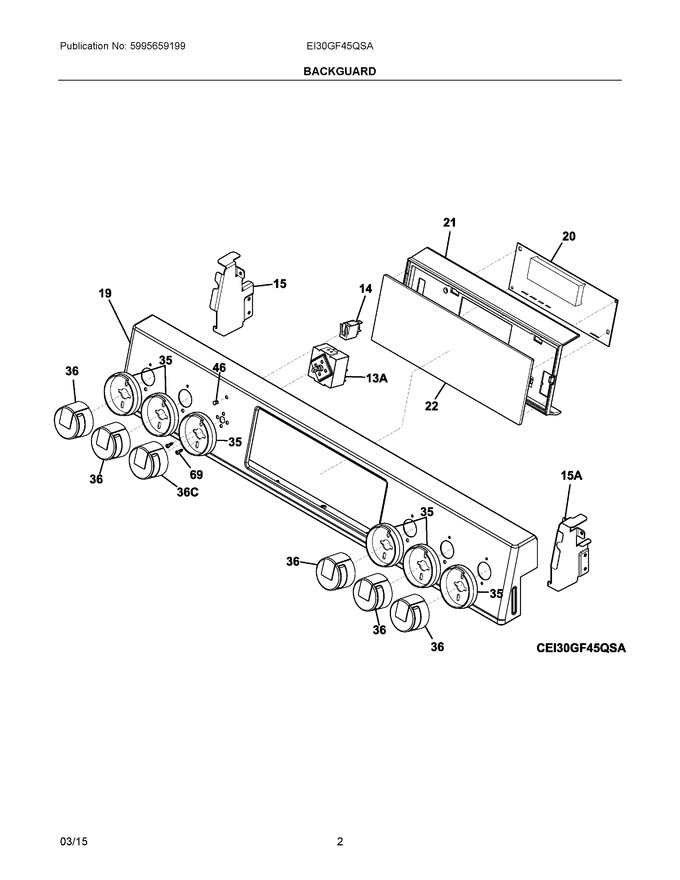

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022507		Light/lamp, Indicator, Orange				$ 22.75
15	809124402		Bracket, Support, Lh, Control Panel		Appelez-nous	-
19	809125104		Control Panel, Stainless		Appelez-nous	-
20	316474941		Controller, Electronic   (Replaces: 316474924)				$ 341.79
21	809127301		Bracket Assembly, Plastic, Controller				$ 120.58
22	808770702		Control Panel, Touch, Glass, Black				$ 441.83
35	5304499690		Bezel, Knob		Appelez-nous	-
36	316535711		Knob, Top Valve, Stainless, (4)				$ 186.27
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
69	5304401837		Screw, 8-32 X 5/16		Appelez-nous	-
13A	5304508926		Switch, Infinite, Warmer   (Replaces: 316095503)			Immediately	$ 84.18
15A	809124401		Bracket, Support, Rh, Control Panel		Appelez-nous	-
36C	316535716		Knob, Control, Stainless, Warm Zone   (Replaces: 316535712)				$ 108.45
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	807286001		Screw, 10-32 X 1/4				$ 12.02
NIA	5304453707		Screw, 8-18 X 1/2			Immediately	$ 15.92
NIAA	5304497165		Harness, Wiring, Warmer Switch		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
