SELECT A DIAGRAM

01 - Cover Sheet

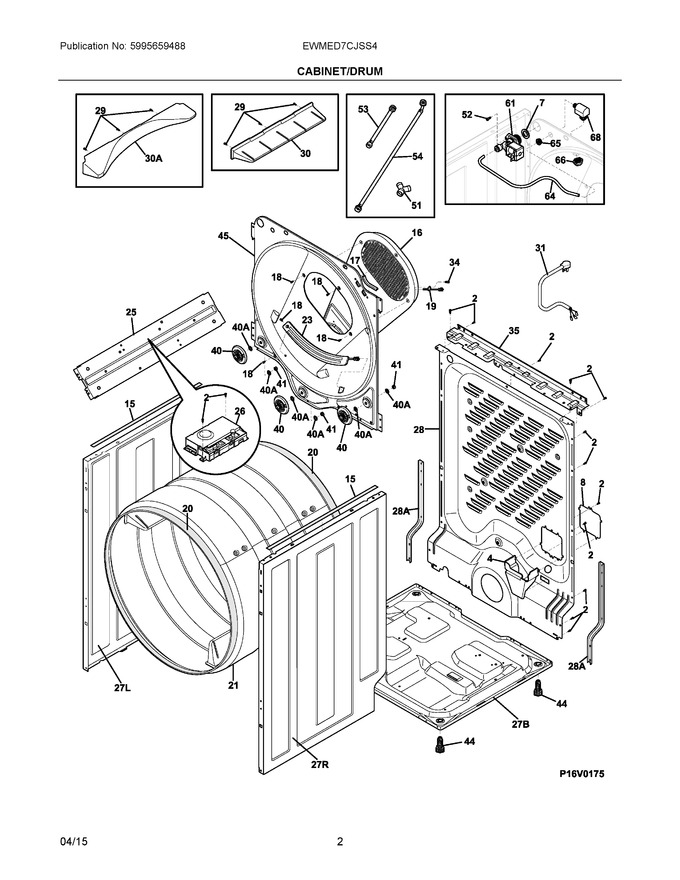

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134792100		Bracket, Main, Terminal				$ 29.07
7	5303161296		Washer, Inlet Hose			Immediately	$ 2,372.96
8	137578600		Cover, Access, Terminal Block				$ 12.65
15	137031800		Cushion, Vibration, Top Panel			Immediately	$ 8.51
16	134711702		Duct, Heat, Rear				$ 100.80
17	134792900		Protector, Edge, Right Top Front, 85.0+/-1.5				$ 13.46
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
19	134711200		Thermistor, Inlet			Immediately	$ 51.03
20	5304499489		Seal, Felt, Drum			Immediately	$ 56.69
21	137610710		Drum, 2 Rib 38			Immediately	$ 426.67
23	134786100		Sensor, Moisture, Assembly				$ 84.27
25	137567000		Bracket, Mounting, Main Cntl Box		Appelez-nous	-
26	809160314		Board, Cntl, Main, W/housing				$ 283.17
28	137560425		Panel, Backsheet   (Replaces: 137560413)			Immediately	$ 235.53
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
30	137610900		Vane, Drum W/bumps				$ 95.68
31	5304505408		Power Cord, Electric Svce, 240, 4-wire Canada   (Replaces: 134502300)				$ 194.62
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	134713100		Bracket, Top Panel Mtg., Rear				$ 70.82
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
44	134158000		Leveling Leg, Screw		Appelez-nous	-
45	137556623		Bulkhead, Panel, Rear				$ 311.52
51	5304500709		Fitting, "y", Hose, Adapter   (Replaces: 137016711)			Immediately	$ 12.56
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
53	137471800		Hose, Water Inlet, 12#				$ 2,372.96
54	5304503984		Hose, Inlet 48" Subassembly   (Replaces: 137471700)				$ 46.07
61	137544800		Valve, Mist Lowprofile			Immediately	$ 78.44
64	5304529773		Tube, Water Valve To, Misting Nozzle   (Replaces: 137402400)				$ 77.30
65	137017200		Grommet, Misting Tube				$ 3.55
66	5304529773		Nut, Nozzle   (Replaces: 137017300)				$ 77.30
68	5304529773		Adapter, Water Nozzle, Complete   (Replaces: 137030100)				$ 77.30
27B	134690203		Base, Dryer				$ 273.58
27L	134712625		Panel, Left Side, Silver				$ 229.11
27R	134712725		Panel, Right Side, Silver				$ 287.60
28A	137029800		Bracket, Reinforcement, Backsheet		Appelez-nous	-
30A	137611100		Vane, Drum, Mixing W/bumps				$ 98.51
40A	134716700		Washer, Flat				$ 2.12
NI	137240500		Brace, Side Panel		Appelez-nous	-
NIA	134930800		Wiring Harness, Moisture Sensor			Immediately	$ 48.44
NIA	137360810		Protector, Edge, Side Brace		Appelez-nous	-
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
NIA	134932400		Strain Relief, 240, Pwr Cord				$ 19.06
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NIB	5304506746		Shield, Valve Mist, Low Profile   (Replaces: 137603500)				$ 43.38

    View Diagram in Separate Window       Print Part List
