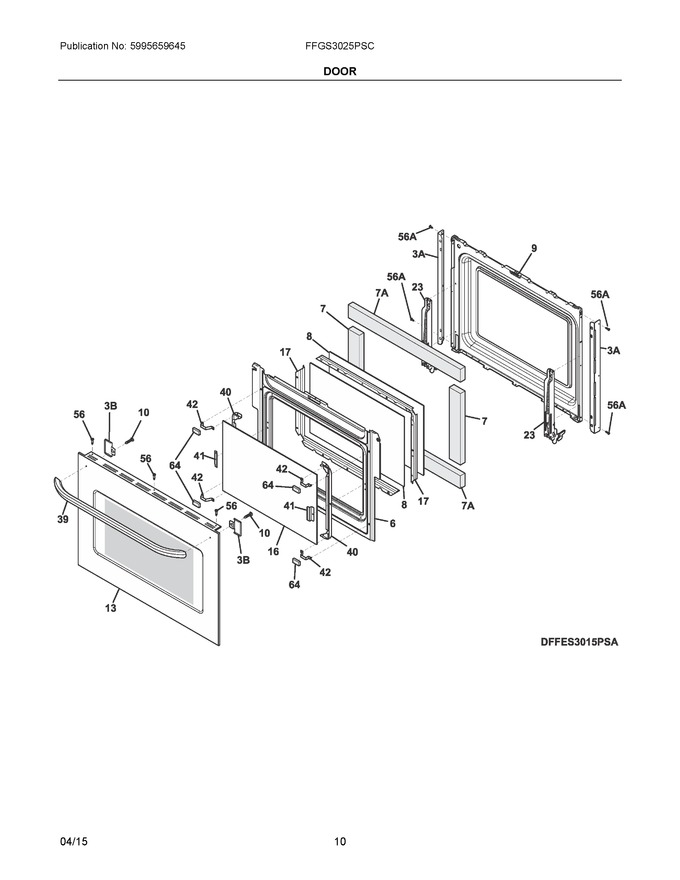

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006905		Baffle, Door				$ 121.34
7	318372017		Insulation, Door				$ 16.30
8	5304503232		Glass, Oven Door, Inner   (Replaces: 316117504)				$ 116.95
9	139000411		Liner, Oven Door   (Replaces: 139000410)				$ 152.43
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
13	139099607		Door Assembly, Outer, Steel/glass, Stainless/black, W/trim				$ 417.71
16	316446401		Glass, Oven Door, Airwash   (Replaces: 316446400)			Immediately	$ 125.13
17	318264731		Spacer, Glass, (2)   (Replaces: 318264712)				$ 72.05
23	316575915		Hinge, Oven Door, Lilac, (2)   (Replaces: 139014301)				$ 166.09
39	316558201		Handle, Door, Stainless				$ 174.23
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)   (Replaces: 318382301)				$ 50.81
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
64	318165800		Spacer, Glass, Foam				$ 17.72
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
3B	318262104		Cover, Rear Door, Black, (2)				$ 24.99
56A	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
7A	318372016		Insulation, Door				$ 17.72
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
