SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram

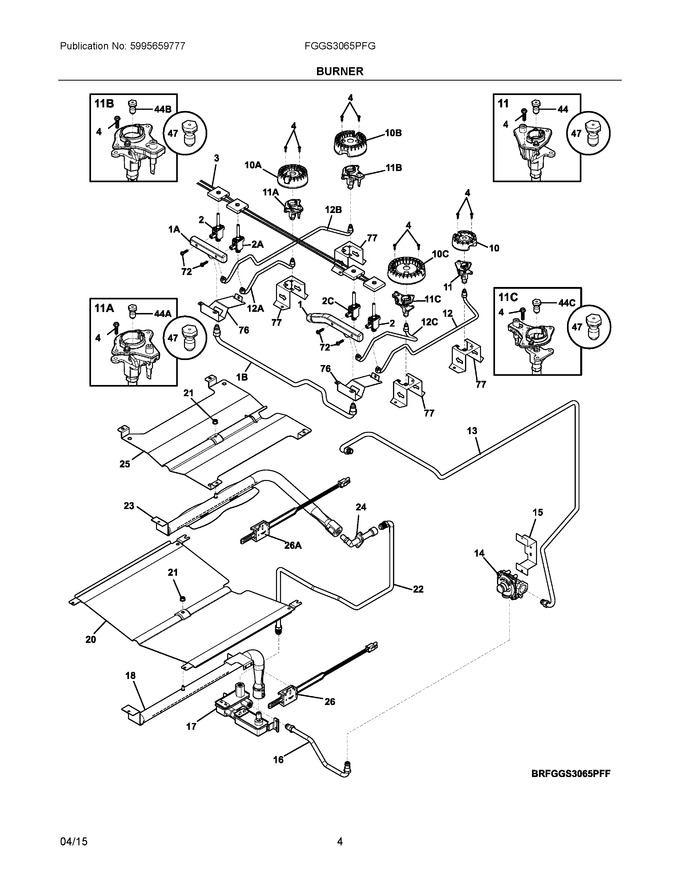

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318913400		Manifold, Right Side				$ 133.88
2	5303935306		Valve, Top Burner, 1125 Btu, Blue Stem				$ 80.80
3	5304491103		Switch Assembly, Ignitor, 4 Valve, W/harness				$ 98.60
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
12	318916800		Tube, Burner Supply, Rh Rear				$ 110.09
13	318913600		Tube, Rgltr To Manf				$ 140.23
14	316091711		Regulator, Pressure   (Replaces: 316416705)			Immediately	$ 90.03
15	318262810		Bracket, Regulator		Appelez-nous	-
16	318289500		Tube, Regulator Valve				$ 75.84
17	316031501		Valve, Safety			Immediately	$ 296.26
18	5304502520		Burner, Bake   (Replaces: 139007000)				$ 173.66
20	139005100		Baffle, Bake Burner				$ 95.68
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	139009500		Tube, Broil Supply				$ 71.59
23	139007101		Burner, Broil   (Replaces: 139007100)				$ 116.24
24	316409703		Elbow, Mixer				$ 138.70
25	316401301		Baffle, Broil Burner				$ 173.57
26	139013700		Ignitor, Bake Burner			Immediately	$ 171.52
44	316527504		Orifice, Burner, 5k				$ 22.68
47	GRLP4		Conversion Kit, Lp   (Replaces: 318565405)			Immediately	$ 56.70
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
76	318906703		Bracket, Manifold, (2)				$ 46.57
77	318920300		Bracket, Burner Mtg, (4)		Appelez-nous	-
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10C	316438400		Burner, Sealed, 17k			Immediately	$ 83.42
11A	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11B	316543206		Ignitor/orifice Assy., Top Burner, 14k, W/holder				$ 146.71
11C	316543203		Ignitor/orifice Assy., Top Burner, 17k, W/holder				$ 12.20
12A	318916500		Tube, Burner Supply, Lh Front				$ 47.78
12B	318916600		Tube, Burner Supply, Lh Rear		Appelez-nous	-
12C	318916700		Tube, Burner Supply, Rh Front				$ 51.74
1A	318907200		Manifold, Pipe, Lh				$ 115.03
1B	318913500		Tube, Connection, Manifold				$ 106.52
26A	139013701		Ignitor, Broil Burner				$ 170.81
2A	316536006		Valve, Top Burner, 1800 Btu, Red Stem				$ 33.31
2C	316560903		Valve, Top Burner, 2500 Btu, Yellow Stem				$ 55.55
44A	316527500		Orifice, Burner, 9.5k				$ 21.40
44B	316527513		Orifice, Top Burner, 14k				$ 22.05
44C	316527509		Orifice, Burner, 17k				$ 19.85
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	318199776		Wiring Harness, Ignitor				$ 54.60
NI	808041201		Harness, Wiring, Oven Ignitors				$ 51.57

    View Diagram in Separate Window       Print Part List
