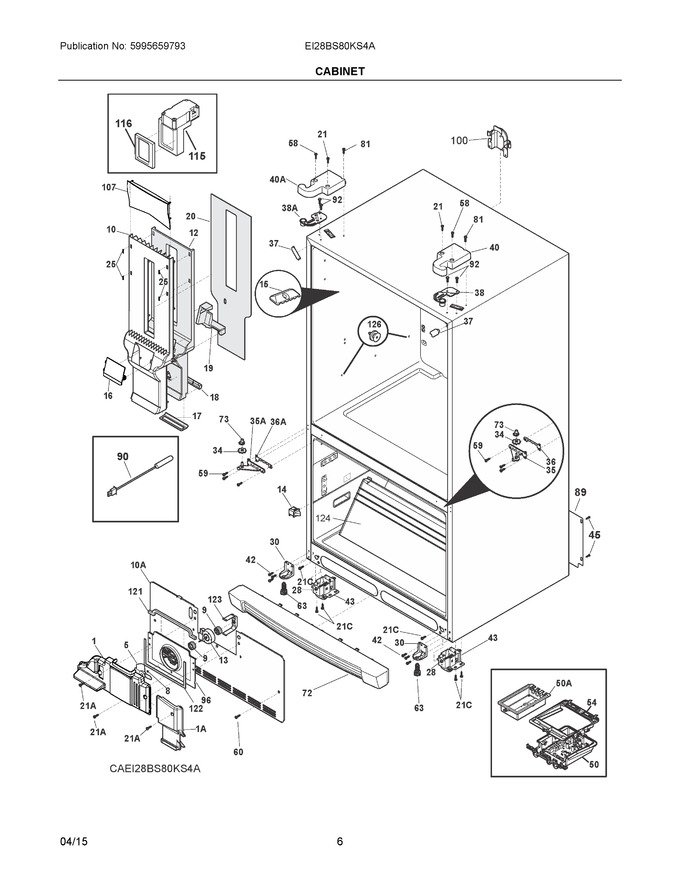

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304503130 | Cover-fan (Replaces: 242099402) |
|
$ 72.05 | |||||
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241518301 | Bushing, Motor Mounting |
|
$ 66.63 | |||||
| 10 | 242058504 | Cover-air Duct |
|
$ 170.73 | |||||
| 12 | 242073901 | Foam-air Supply |
|
$ 66.31 | |||||
| 13 | 809069220 | Motor, Evaporator Fan (Replaces: 241509402) |
|
Immediately | $ 154.14 | ||||
| 14 | 240505803 | Switch, Light/lamp |
|
$ 40.37 | |||||
| 15 | 241891104 | Light-led |
|
- | |||||
| 16 | 242164401 | Cover-damper |
|
$ 21.16 | |||||
| 17 | 241928201 | Gasket-air Duct |
|
$ 17.72 | |||||
| 18 | 241928101 | Duct-air |
|
$ 8.23 | |||||
| 19 | 241871901 | Support-eps Damper |
|
$ 18.43 | |||||
| 20 | 241922902 | Cover-air Duct, Rear |
|
$ 0.07 | |||||
| 21 | 241732101 | Screw, 10-32 X 1/2 |
|
Immediately | $ 15.60 | ||||
| 25 | 241949502 | Clip, Air Vent |
|
$ 20.48 | |||||
| 28 | 5304499445 | Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special (Replaces: 240335502) |
|
Immediately | $ 31.33 | ||||
| 30 | 241778701 | Bracket-anti Tip |
|
$ 26.54 | |||||
| 34 | 241868301 | Washer, Hinge, Nylon, (2) |
|
$ 31.19 | |||||
| 35 | 241763005 | Hinge-lower, Zinc, Rh |
|
- | |||||
| 36 | 241868201 | Spacer, Door, Lower Rh |
|
$ 49.62 | |||||
| 37 | 242161206 | Trim-cabinet Corner, Gray, (2) (Replaces: 240337616) |
|
$ 10.62 | |||||
| 38 | 241761301 | Bracket-upper Hinge, Rh |
|
$ 66.25 | |||||
| 40 | 242099809 | Cover-upper Hinge, Gray, Rh |
|
$ 71.59 | |||||
| 42 | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| 43 | 5304499445 | Roller Assy, Front, (2) (Replaces: 240335006) |
|
Immediately | $ 31.33 | ||||
| 45 | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 12.05 | |||||
| 50 | 5304499086 | Board-main Power, Board & Housing |
|
$ 180.97 | |||||
| 54 | 807854301 | Support, Housing, Main Board |
|
$ 45.36 | |||||
| 58 | 241500305 | Screw (Replaces: 241853202) |
|
$ 3.03 | |||||
| 59 | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 72 | 241930301 | Grille/kickplate |
|
$ 301.93 | |||||
| 73 | 242075701 | Cam-lower Hinge |
|
$ 22.75 | |||||
| 81 | 134154100 | Screw, Hex Head, #10-32 X 3/8 (Replaces: 242025601) |
|
$ 13.46 | |||||
| 89 | 5304520905 | Cover-access, W/label (Replaces: 241733905) |
|
Immediately | $ 74.03 | ||||
| 90 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 92 | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg |
|
$ 13.46 | |||||
| 96 | 241860601 | Shroud-evap Fan Mtg |
|
Immediately | $ 131.83 | ||||
| 100 | 242157601 | Cover, Tubing, Eps Block |
|
$ 11.92 | |||||
| 107 | 241963101 | Duct-air, Top |
|
$ 41.16 | |||||
| 115 | 5303918899 | Damper, Motorized (Replaces: 241518501) |
|
Immediately | $ 73.24 | ||||
| 116 | 241518601 | Seal-damper, Foam |
|
$ 9.22 | |||||
| 121 | 241860103 | Gasket-evap, Upper |
|
Immediately | $ 3.73 | ||||
| 122 | 241860117 | Gasket-evap, Bottom (Replaces: 241860102) |
|
Immediately | $ 11.21 | ||||
| 123 | 242135301 | Clip, Evap Fan Motor, Evap Fan Motor |
|
$ 7.79 | |||||
| 124 | 242006903 | Duct-air, Freezer (Replaces: 242006902) |
|
Immediately | $ 63.70 | ||||
| 126 | 242081301 | Screw-shoulder |
|
- | |||||
| 10A | 241860402 | Cover-evap Coil, Lower |
|
Immediately | $ 130.91 | ||||
| 1A | 242159201 | Cover, Fan |
|
- | |||||
| 21A | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 35A | 241763006 | Hinge-lower, Zinc, Lh |
|
- | |||||
| 36A | 241868202 | Spacer, Door, Lower Lh |
|
$ 23.51 | |||||
| 38A | 241761302 | Bracket-upper Hinge, Lh |
|
$ 64.49 | |||||
| 40A | 242099810 | Cover-upper Hinge, Gray, Lh |
|
$ 59.42 | |||||
| 50A | 241891603 | Board-led Power |
|
- | |||||
| NI | 5304453707 | Screw, Quad Hilo, #8-18, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NI | 218515401 | Clip-grille |
|
$ 17.72 | |||||
| NI | 240494001 | Plug, Button, Cab Liner Holes (Replaces: 240479601) |
|
Immediately | $ 18.20 | ||||
| NI | 241695904 | Screw |
|
$ 14.41 | |||||
| NIA | 241810104 | Seal, Housing |
|
$ 12.13 | |||||
| NIA | 242004802 | Foam Strip |
|
$ 5.67 | |||||
| NIA | 241859801 | Cover-eps, Damper |
|
$ 8.93 | |||||
| NIA | 241842301 | Cap-thermistor |
|
Immediately | $ 34.02 | ||||
| NIAA | 241860111 | Gasket-evap, Bottom |
|
$ 12.05 | |||||
| NIAA | 242193602 | Plug-hole, Icemaker (Replaces: 241557601) |
|
$ 14.41 | |||||
| NIAA | 241852501 | Clip, Wiring Harness |
|
$ 15.60 | |||||
| NIAB | 241860104 | Gasket-coil Cover |
|
Immediately | $ 29.77 | ||||
| NIAB | 241860112 | Gasket-evap, Upper |
|
$ 7.09 | |||||
| NIAC | 241860105 | Gasket-coil Cover |
|
Immediately | $ 17.87 | ||||
| NIB | 242045503 | Harness-wiring |
|
$ 40.40 | |||||
| NIB | 241953904 | Screw, #8-18 |
|
$ 10.63 | |||||
| NIB | 242104901 | Harness-wiring |
|
$ 127.40 | |||||
| NIB | 241953902 | Screw, #8 - 18 X .380 |
|
Immediately | $ 17.11 | ||||
| NIC | 241969001 | Cap, Screw |
|
$ 16.69 |
