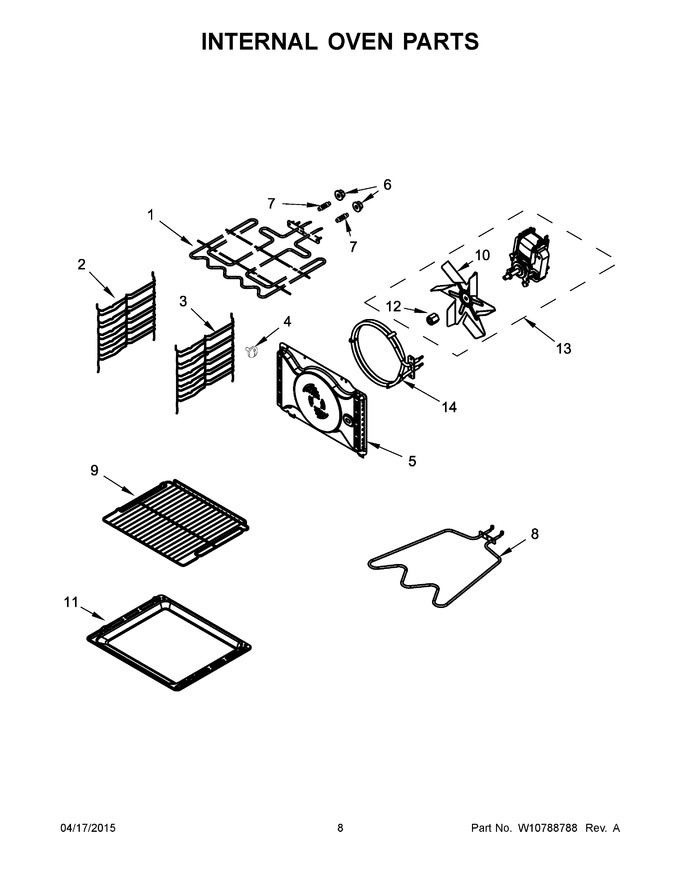

05 - Internal Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10519050		Element, Upper Grill 2450 Watts		Appelez-nous	-
2	W10519019		Grid, Rack Left Side				$ 18.60
3	W10519021		Grid, Rack Right Side		Appelez-nous	-
4	W10519022		Screw, Grid				$ 11.95
5	W10519061		Baffle, Convection Fan				$ 49.34
6	8186881		Nut, Upper Element M4		Appelez-nous	-
7	W10519809		Spring, Upper Element				$ 3.26
8	W10517988		Element, Lower 1150 Watts			Immediately	$ 37.44
9	W10536500		Rack, Oven   (Replaces: W10519013)				$ 8.99
10	8186866		Blade, Fan				$ 137.61
11	W10519060		Pan, Deep				$ 58.88
12	8186882		Nut		Appelez-nous	-
13	W10517945		Motor, Fan Convection				$ 62.87
14	W10519049		Element, Convection 2000 Watts			Immediately	$ 36.64
