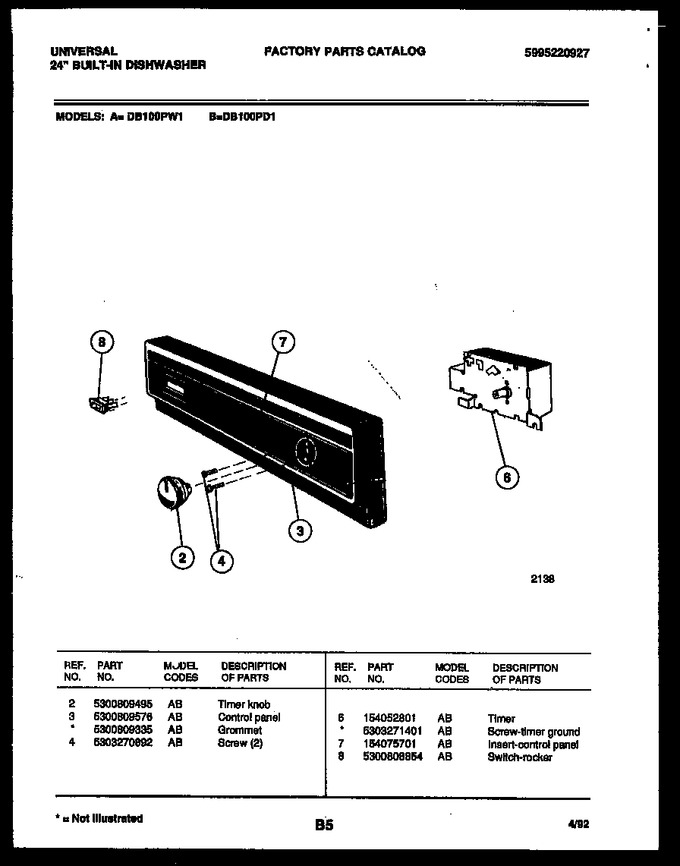

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5300809495 | Timer Knob |
|
$ 80.48 | |||||
| 3 | 5300809576 | Control Panel |
|
- | |||||
| 4 | 5303270892 | Screw (2) |
|
- | |||||
| 6 | 154052801 | Timer |
|
- | |||||
| 7 | 154075701 | Insert-control Panel |
|
- | |||||
| 8 | 5300808854 | Switch - Rocker |
|
- | |||||
| 3A | 5300809335 | Grommet (non-illustrated) |
|
- | |||||
| 6A | 5303271401 | Screw-timer Ground (non-illustrated) |
|
- |
