01 - Cover Sheet

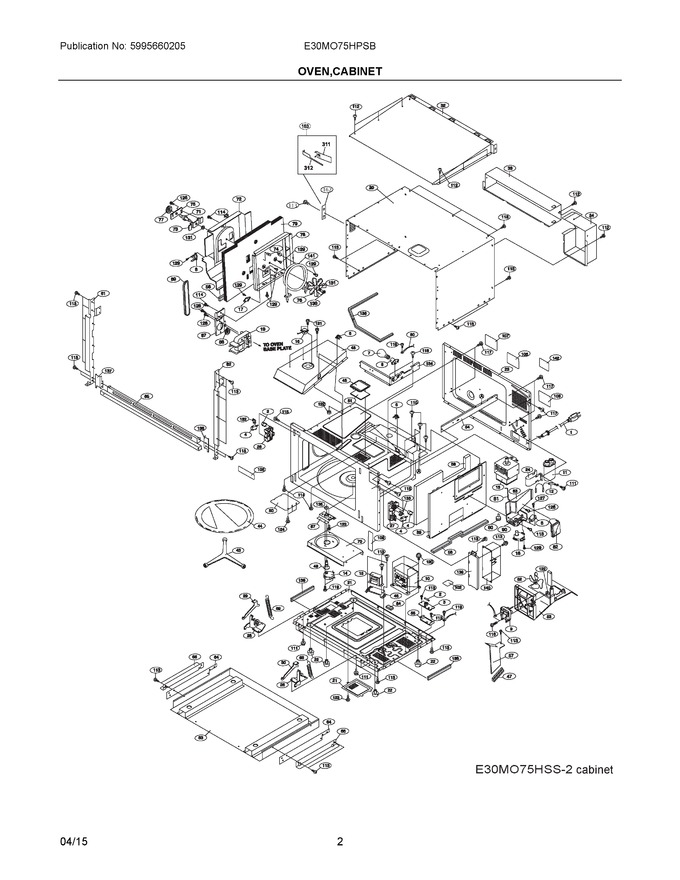

02 - Oven,cabinet


03 - Control Panel,door,misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304470537		Power Cord, Electric				$ 117.12
2	5304461109		Assembly, Fuse & Switch, Monitor				$ 125.69
3	5304498734		Filter, Noise, W/fuse Mount			Immediately	$ 51.74
4	5304493153		Switch, Interlock, Door Sensor			Immediately	$ 83.38
5	5304451403		Thermal Cutout, Top Heater				$ 146.71
6	5304461114		Thermal Cut-out, Convection/oven, (2)				$ 181.73
7	5304464198		Lamp, Oven Light			Immediately	$ 39.04
8	5304463785		Lampholder, Socket				$ 43.24
9	5304461119		Motor, Fan				$ 429.36
10	5304470538		Transformer, Power				$ 368.55
11	5304470539		Capacitor, High Voltage				$ 145.76
12	5304531883		Rectifier Assembly, High Voltage   (Replaces: 5304480635)				$ 35.67
13	5304501808		Magnetron			Immediately	$ 249.71
14	5304498736		Motor, Turntable				$ 104.62
15	5304470541		Transformer, Low Voltage				$ 225.14
16	5304461125		Sensor Assembly, Ah				$ 150.26
17	5304483929		Thermistor				$ 80.80
18	5304485889		Motor, Damper				$ 53.78
19	5304471782		Motor, Convection Fan				$ 249.90
20	5304470542		Cabinet, Outer Casing				$ 245.24
21	5304470734		Base, Chassis, W/motor Cover		Appelez-nous	-
22	5304461127		Foot, Cabinet, (4)				$ 15.54
23	5304498738		Panel, Cabinet Back		Appelez-nous	-
24	5304498739		Holder, Capacitor		Appelez-nous	-
25	5304480638		Hinge, Oven, Lh				$ 166.37
26	5304480639		Hinge, Oven, Rh				$ 167.00
27	5304470547		Latch Hook, Right Side			Immediately	$ 51.32
28	5304470548		Latch Hook, Left Side			Immediately	$ 51.03
29	5304480640		Cam, Door, Lh				$ 85.30
30	5304480641		Cam, Door, Rh			Immediately	$ 116.40
32	5304501829		Cover, Front		Appelez-nous	-
33	5304470553		Duct, B		Appelez-nous	-
34	5304470554		Duct, C		Appelez-nous	-
43	5304501830		Support, Turntable, With Rollers				$ 122.62
44	5304518632		Tray, Turntable, Ceramic   (Replaces: 5304498731)				$ 211.21
45	5304461155		Frame, Light Lens		Appelez-nous	-
46	5304470564		Bracket, Mounting, Transformer		Appelez-nous	-
47	5304461157		Cushion		Appelez-nous	-
48	5304461158		Duct Assembly, Steam Release		Appelez-nous	-
49	5304480644		Coupling, Turntable				$ 138.80
50	5304461165		Cover, Waveguide				$ 232.99
51	5304461167		Lens, Light		Appelez-nous	-
52	5304461173		Blade, Fan				$ 44.65
53	5304461174		Duct, Cooling Fan		Appelez-nous	-
54	5304461175		Support, Chassis		Appelez-nous	-
55	5304461178		Bracket, Noise Filter, Angle		Appelez-nous	-
56	5304461156		Cushion		Appelez-nous	-
57	5304461181		Guide, Air, Magnetron		Appelez-nous	-
58	5304461182		Sheet, Thermal, Protection		Appelez-nous	-
59	5304461183		Cover, Thermal Sheet, Panel		Appelez-nous	-
60	5304461196		Wiring Harness, Thermistor		Appelez-nous	-
61	5304470565		Trim, Left Side		Appelez-nous	-
62	5304470566		Trim, Right Side		Appelez-nous	-
63	5304501831		Duct, Exhaust		Appelez-nous	-
64	5304501832		Angle, Bottom		Appelez-nous	-
65	5304475717		Louver, Inlet, 30 Inch		Appelez-nous	-
66	5304501833		Angle, Shipping		Appelez-nous	-
67	5304451459		Bracket, Turntable Mount		Appelez-nous	-
68	5304503731		Spring, Door, Rh   (Replaces: 5304480645)				$ 70.16
69	5304503732		Spring, Door, Lh   (Replaces: 5304480646)				$ 67.49
70	5304470576		Insulator, Thermal Barrier		Appelez-nous	-
71	5304461146		Bearing Assembly		Appelez-nous	-
72	5304461147		Plate, Thermal Protect, Lh		Appelez-nous	-
73	5304461148		Plate, Bearing Mtg		Appelez-nous	-
74	5304461149		Holder, Element		Appelez-nous	-
75	5304461150		Plate, Bearing Holder		Appelez-nous	-
76	5304461151		Fan Blade, Convection		Appelez-nous	-
77	5304471508		Pulley, Convection Fan				$ 38.28
78	5304461153		Duct Assembly, Heater		Appelez-nous	-
79	5304461154		Sheet, Thermal Protect, Lh		Appelez-nous	-
80	5304461159		Cam, Damper		Appelez-nous	-
81	5304461160		Shaft, Damper		Appelez-nous	-
82	5304461161		Door Assembly, Damper				$ 73.71
83	5304461162		Duct, Damper		Appelez-nous	-
84	5304461163		Cushion		Appelez-nous	-
87	5304461172		Plate, Motor Mtg, Convection		Appelez-nous	-
88	5304461152		Pulley, Motor, Convection Fan				$ 38.28
89	5304461177		Belt, Convection Fan				$ 84.34
90	5304461179		Cushion, Damper Duct		Appelez-nous	-
102	5304440334		Label, Caution-monitor		Appelez-nous	-
103	5304465314		Label, Nhw Caution		Appelez-nous	-
105	5304451534		Label, User Caution, French				$ 3.55
106	5304470585		Label, Height Caution		Appelez-nous	-
107	5304440333		Label, Caution-dhhs		Appelez-nous	-
109	5304471514		Label, Menu		Appelez-nous	-
110	5303319636		Screw, (5)		Appelez-nous	-
111	5304451550		Screw, 4 Mm X 8 Mm		Appelez-nous	-
112	5304502863		Screw, 4 Mm X 8 Mm, Silver   (Replaces: 5304451552)				$ 10.85
113	5304451553		Screw, 4 Mm X 12 Mm				$ 14.89
114	5304461203		Screw, 4mm X 10mm, (6)		Appelez-nous	-
115	5303319641		Screw, (2)				$ 12.76
116	5304461209		Screw, 4mm X 25mm, (2)		Appelez-nous	-
117	5304470587		Screw		Appelez-nous	-
118	5304461215		Screw, 4mm X 8mm, (2)		Appelez-nous	-
119	5304470588		Screw				$ 9.93
120	5304461221		Screw, 6mm X 14mm, (4)		Appelez-nous	-
121	5304470589		Screw		Appelez-nous	-
122	5304470590		Nut, Special		Appelez-nous	-
123	5304450253		Screw, 4 Mm X 8 Mm				$ 14.89
124	5304461210		Screw, 4mm X 6mm, (3)		Appelez-nous	-
126	5304461204		Screw, 4mm X 8mm, (2)		Appelez-nous	-
127	5304461208		Screw, 3mm X 14mm		Appelez-nous	-
128	5304471515		Screw		Appelez-nous	-
129	5304461216		Screw, 3mm X 6mm		Appelez-nous	-
130	5304451547		Nut, Element, 4 Mm X 3.2 Mm, (4)		Appelez-nous	-
131	5304461214		Washer		Appelez-nous	-
132	5304470591		Lever, Switch Actuator, Left				$ 55.67
133	5304470592		Lever, Switch Actuator, Right				$ 46.61
134	5304461171		Guide, Air, Rh		Appelez-nous	-
135	5304451470		Packing, Silicon				$ 52.05
136	5304461166		Cushion, (4)		Appelez-nous	-
137	5304470593		Trim, Decorative, Left Side		Appelez-nous	-
138	5304470594		Trim, Decorative, Right Side		Appelez-nous	-
139	5304470735		Holder, Power Board				$ 46.78
140	5304480616		Power Board, Printed Circuit				$ 441.00
141	5304474695		Element, Heating, Convection		Appelez-nous	-
142	5304440346		Label, User Caution, French				$ 34.73
162	5304451562		Bracket, Oven Retainer, Anti-tip		Appelez-nous	-
163	5304501835		Anti-tip Kit, W/brackets, Tools, Screws				$ 65.21
311	318246000		? Bracket, Cabinet, Anti-tip		Appelez-nous	-
312	318246702		? Tool, Oven Release, Rh Key				$ 12.13
312A	318246703		? Tool, Oven Release, Lh Key				$ 12.13
NIA	134178901		? Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NIB	5304438005		? Screw, 6 X 1, Black				$ 9.93
