01 - Cover Sheet
02 - Cook Top

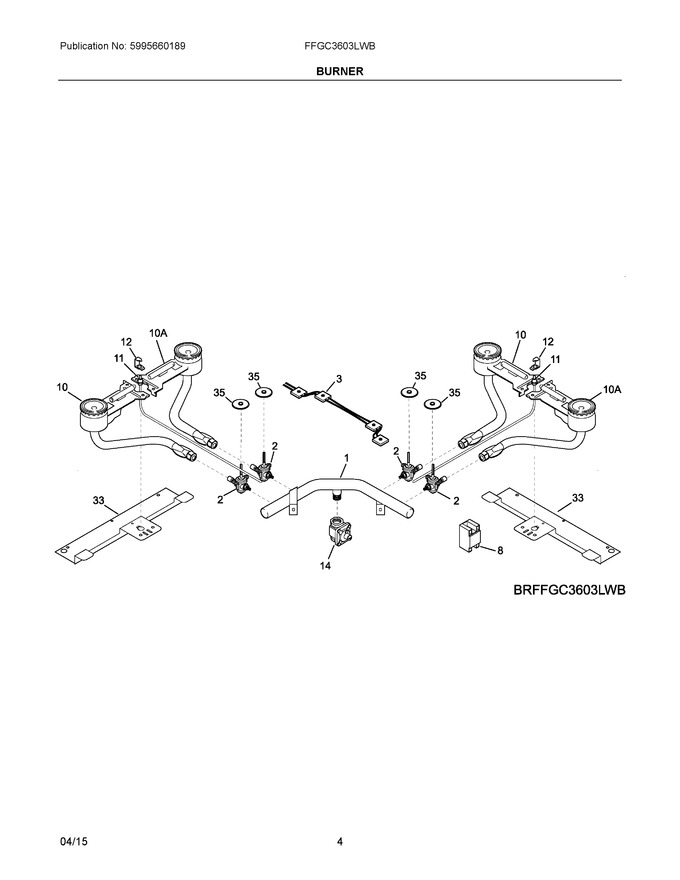

03 - Burner
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318177102 | Manifold Pipe |
|
- | |||||
| 2 | 318087010 | Valve, Top Burner |
|
- | |||||
| 3 | 318232666 | Wiring Harness, W/igntr Switch |
|
- | |||||
| 8 | 5304518635 | Module, Spark (Replaces: 316135700) |
|
$ 87.21 | |||||
| 10 | 318176412 | Burner, Top, Lf & Rr |
|
- | |||||
| 11 | 318148503 | Ignitor, Top Burner |
|
- | |||||
| 12 | 305593300 | Retainer, Ignitor |
|
- | |||||
| 14 | 318122707 | Regulator, Pressure (Replaces: 318122712) |
|
$ 121.19 | |||||
| 33 | 5303311317 | Bracket, Burner Mtg, (2) |
|
- | |||||
| 35 | 318146301 | Bushing |
|
$ 34.34 | |||||
| 10A | 318176413 | Burner, Top, Rf & Lr |
|
- | |||||
| NI | 803910601 | Screw, (2) |
|
- | |||||
| NI | 305338604 | Screw, 6-32 X 1/4", Back |
|
- | |||||
| NIA | 318024201 | Bracket, Spark Module |
|
$ 9.08 | |||||
| NIA | 5303323141 | Screw, Valve Mtg, 1/4-20 X 5/16 |
|
- |
