SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System

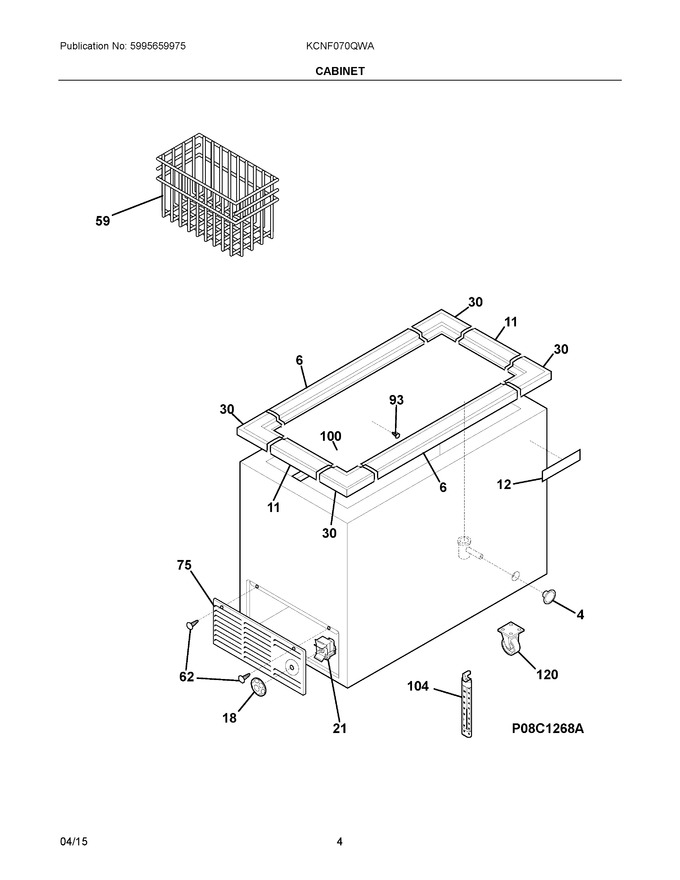

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
4	297013600		Plug, Drain, Exterior				$ 9.98
6	297400602		Breaker		Appelez-nous	-
11	297400606		Breaker, White, Chest End, (2)		Appelez-nous	-
12	297146601		Nameplate, Commercial		Appelez-nous	-
18	216707201		Knob, Temp Control				$ 37.54
21	5304496559		Control-temperature   (Replaces: 297216000)			Immediately	$ 44.18
30	297400500		Breaker-corner, White		Appelez-nous	-
59	297118401		Basket				$ 94.36
62	5304463819		Screw, Ab, 8-18x3/8				$ 1.27
73	297070101		Thermometer		Appelez-nous	-
75	297412700		Panel, Access, White				$ 36.25
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
93	216858001		Screw, Ph Truss Head, 8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
100	216654200		Track-basket		Appelez-nous	-
120	216621000		Caster		Appelez-nous	-
NI	5304493735		Wire Guard		Appelez-nous	-
NI	216621100		Wrench		Appelez-nous	-
NI	216614300		Screw		Appelez-nous	-
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85

    View Diagram in Separate Window       Print Part List
