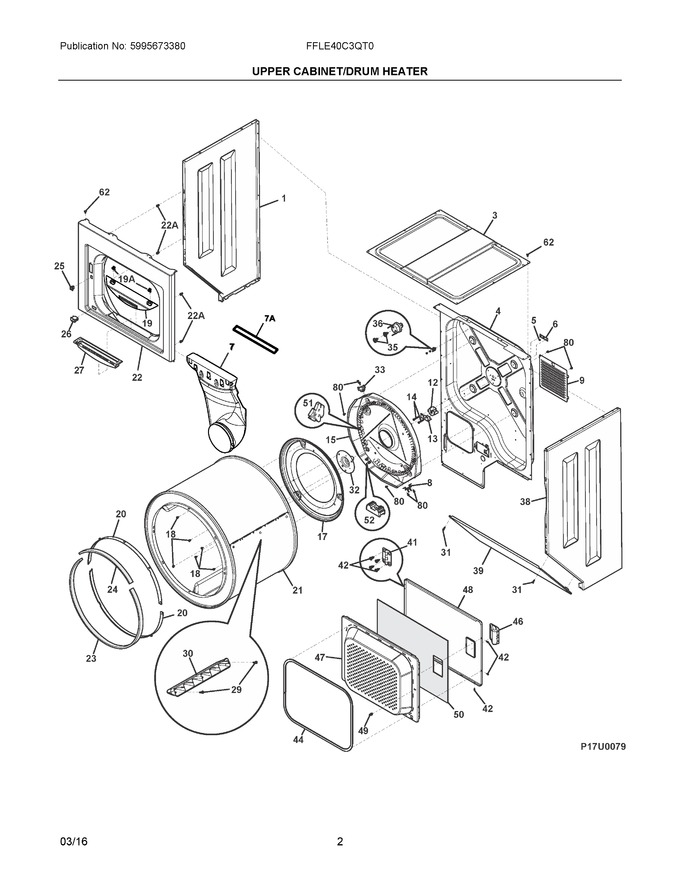

02 - Upper Cabinet/drum Heater
03 - Motor/blower/belt
04 - Control Panel
05 - Lower Cabinet/top
06 - Motor/tub
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 137510411 | Panel, Left Side, Titanium |
|
$ 251.00 | |||||
| 3 | 131883301 | Panel, Top |
|
$ 276.98 | |||||
| 4 | 5304500431 | Panel, Rear, Lc Dryer |
|
$ 292.05 | |||||
| 5 | 5303281019 | Ball, Grounding |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip, Ball, Steel, Flat Nut |
|
$ 17.01 | |||||
| 7 | 5304521121 | Duct, Air (Replaces: 134086301) |
|
$ 118.56 | |||||
| 8 | 137032600 | Limiter, Thermal, Heater |
|
Immediately | $ 22.00 | ||||
| 9 | 5304488480 | Panel, Motor Access, Washed |
|
- | |||||
| 12 | 131825900 | Bearing, Drum Support |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket, Bearing Support (Replaces: 131724300) |
|
Immediately | $ 25.66 | ||||
| 14 | 131205400 | Screw, Bracket Mtg., 10-16b X 1.375, Cr/sq Drive |
|
$ 12.76 | |||||
| 15 | 137392700 | Heater Asmy W/housing, Elect W/therm |
|
Immediately | $ 205.84 | ||||
| 17 | 3204254 | Baffle, Heater Shield |
|
$ 129.00 | |||||
| 18 | 131168200 | Screw, 10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 19 | 131729302 | Cover, Moisture Sensor, Asmy |
|
$ 59.76 | |||||
| 20 | 137513300 | Glide, Flat, Dryer |
|
Immediately | $ 36.68 | ||||
| 21 | 5304517316 | Drum, Dryer Svc Kit, Galv. Steel (Replaces: 134122556) |
|
$ 359.30 | |||||
| 22 | 137552115 | Panel, Front Weld, Titanium |
|
$ 279.11 | |||||
| 23 | 5303937183 | Seal, Felt, Lower (Replaces: 134134700) |
|
Immediately | $ 35.87 | ||||
| 24 | 5303937182 | Seal, Felt, Upper (Replaces: 134036400) |
|
Immediately | $ 26.89 | ||||
| 25 | 131658800 | Door Catch, Gray, Upper (Replaces: 131658820) |
|
Immediately | $ 68.38 | ||||
| 26 | 134813660 | Switch, Door, Rectangle, Gray |
|
Immediately | $ 22.42 | ||||
| 27 | 131359601 | Lint Trap, Gray |
|
- | |||||
| 29 | 131382300 | Screw, Quadrex Head, 10-14 X 1.00, Vane Mtg., Special |
|
Immediately | $ 13.46 | ||||
| 30 | 137552902 | Vane, Straight, Low |
|
$ 38.32 | |||||
| 31 | 131202300 | Screw, 10-16ab X 0.625 |
|
Immediately | $ 13.46 | ||||
| 32 | 131777700 | Shaft, Drum Support, Ballhitch (Replaces: 137088600) |
|
Immediately | $ 71.87 | ||||
| 33 | 3204267 | Thermostat, Safety |
|
Immediately | $ 53.49 | ||||
| 35 | 131892100 | Screw, 6-20b X 0.230 |
|
- | |||||
| 36 | 134120900 | Thermal Limiter |
|
Immediately | $ 13.21 | ||||
| 38 | 137510511 | Panel, Right Side, Titanium |
|
$ 258.20 | |||||
| 39 | 137546911 | Panel, Access, Titanium |
|
$ 212.96 | |||||
| 41 | 134222900 | Hinge, Dryer Door |
|
$ 22.68 | |||||
| 42 | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Quad Drive |
|
Immediately | $ 14.89 | ||||
| 44 | 137551901 | Gasket, Door |
|
Immediately | $ 41.00 | ||||
| 46 | 131789404 | Handle, Door, Titanium |
|
$ 94.71 | |||||
| 47 | 137365112 | Panel, Inner Door, Titanium |
|
- | |||||
| 48 | 137408404 | Panel, Outer Door, Titanium |
|
$ 202.71 | |||||
| 49 | 5303207102 | Strike, Door (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 134535300 | Insulator, Heat Shield, Outer Door |
|
$ 60.25 | |||||
| 51 | 131472100 | Insulator, Heater Housing |
|
$ 60.01 | |||||
| 52 | 3202786 | Terminal Block, Heater Housing |
|
$ 64.49 | |||||
| 62 | 131302800 | Screw, 10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 80 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 19A | 5308014350 | Clip, End Cap Mtg, U-type |
|
- | |||||
| 22A | 137362600 | Pin, Panel Locator |
|
$ 35.44 | |||||
| NI | 137352600 | Harness, Door, Sw W/sensor |
|
$ 73.74 | |||||
| NIA | 131295200 | Seal, Air Duct |
|
$ 16.30 | |||||
| NIA | 137576600 | Plug, Light Hole |
|
Immediately | $ 14.18 | ||||
| NIA | 137604901 | Seal, Exhaust Tube |
|
- |
