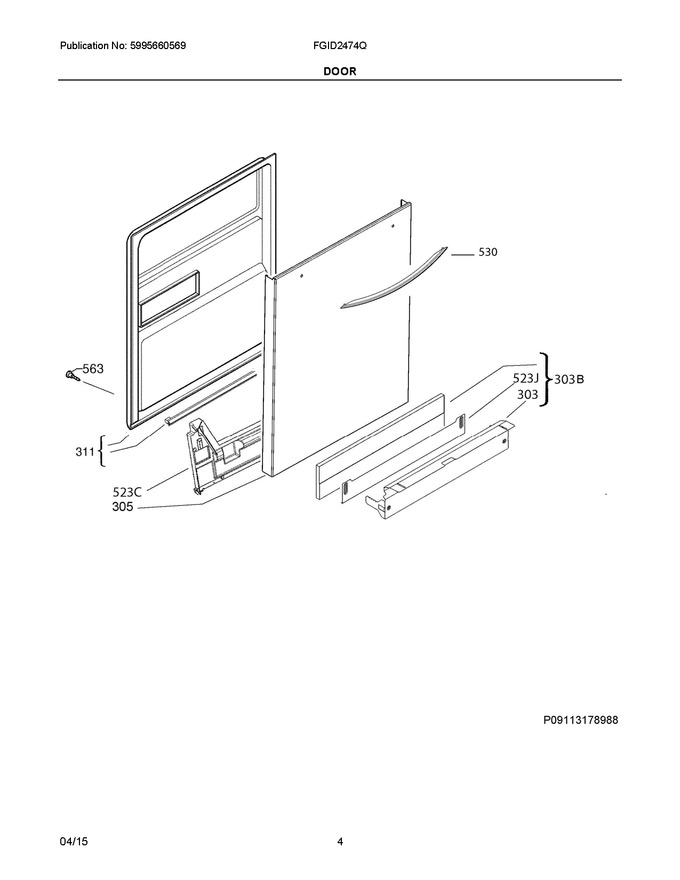

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
303	A02025002		Kickplate, Black   (Replaces: 807110303)				$ 226.66
305	A00030302		Outer Door, Black		Appelez-nous	-
311	A00010702		Liner, Door				$ 397.30
530	154724903		Handle, Towel Bar, Black				$ 170.05
563	405526082		Screw, Kit, 4-2 X 11, (6pcs)				$ 6.51
303B	A02025002		Kickplate, Assembly, Black, W/cover & Insul				$ 226.66
523C	807194801		Support, Kickplate				$ 129.41
523J	807110203		Cover, Sliding, Black, Kickplate				$ 148.89
NI	405530675		Plate, Door Handle, (2)		Appelez-nous	-
NI	5304533456		Screw, Kickplate, 3-5 X 9, (2)   (Replaces: 405530674)				$ 3.50
NI	405530684		Nut, Door Handle, (2)				$ 52.88
