View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

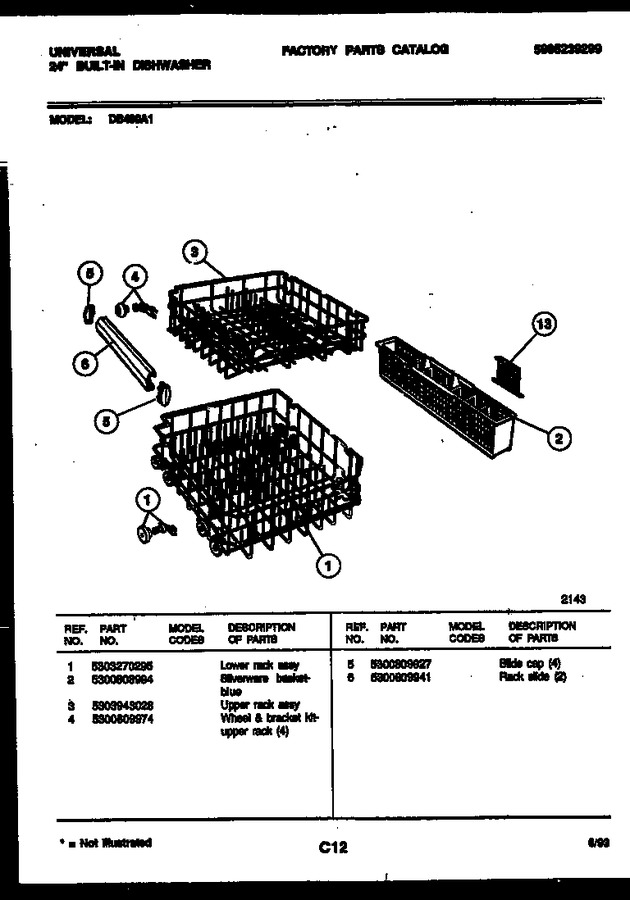

| 1 | 5303270295 | Lower Rack Assy |
|
- | |||||
| 2 | 5304509753 | Silverware Basket-blue (Replaces: 5300808994) |
|
Immediately | $ 36.87 | ||||
| 3 | 5303943028 | Upper Rack Assy |
|
- | |||||
| 4 | 5304535381 | Wheel & Bracket Kit - Upper Rack (4) (Replaces: 5300809974) |
|
Immediately | $ 10.05 | ||||
| 5 | 5300809927 | Slide Cap (4) |
|
Immediately | $ 3.69 | ||||
| 6 | 5300809941 | Rack Slide (2) |
|
- |
