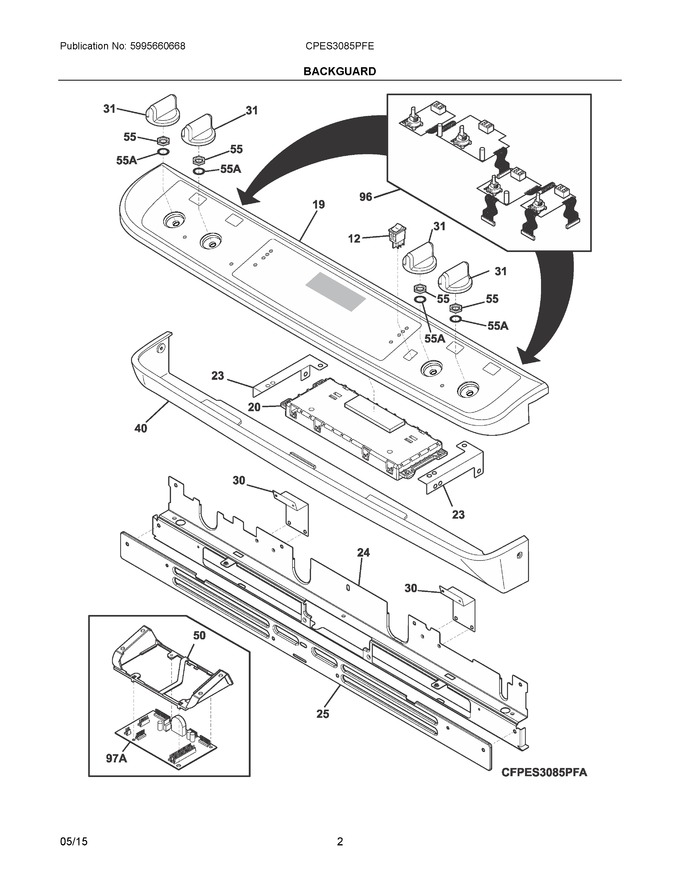

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304527841		Switch, Rocker, Black   (Replaces: 316005602)			Immediately	$ 11.38
19	139059412		Panel Assembly, Control (stainless) (w/overlay-trim)				$ 759.73
20	5304503606		Controller, Electronic, Es530w5   (Replaces: 5304498764)				$ 370.44
23	318921300		Bracket, Control Mtg, (2)				$ 17.64
24	139074901		Frame, Vent Trim, Black		Appelez-nous	-
25	139075001		Cover, Vent Trim, Black				$ 60.52
30	318928502		Bracket, Control Panel, Rear, (2)				$ 15.60
31	316564406		Knob, Control, Stainless				$ 155.22
40	318912907		Panel, Service, Silver				$ 302.40
50	318917700		Chassis, Uib Mounting				$ 91.46
55	316247700		Nut, Mounting				$ 18.20
96	318411402		Control Assembly, Complete, Rotary, W/4 Controls				$ 303.10
55A	316247800		Washer, Lock, Mtg				$ 18.20
97A	316442081		Board, Power, Uib			Immediately	$ 317.51
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	139812500		Harness, Wiring, User Interface				$ 38.38
NI	807633201		Harness, Wiring, Display				$ 153.09
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIAA	5304497426		Plate, Barrier, Power Board				$ 12.06
