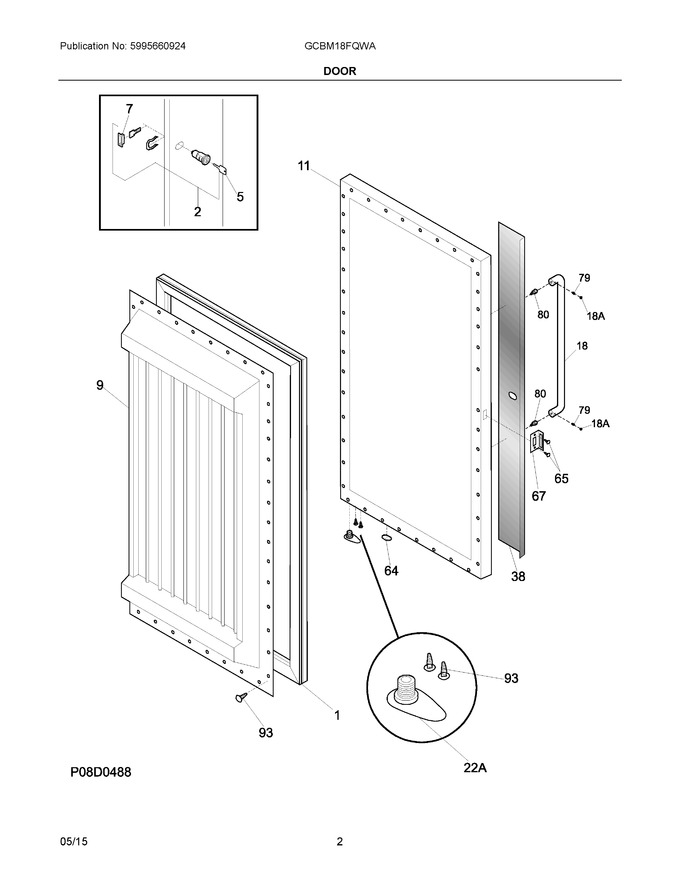

01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506125 | Gasket-door, Gray (Replaces: 216522315) |
|
$ 232.02 | |||||
| 2 | 216362700 | Lock Assy |
|
$ 90.30 | |||||
| 5 | 216362800 | Key, Lock |
|
$ 5.79 | |||||
| 7 | 216468700 | Bezel-lock |
|
$ 35.28 | |||||
| 9 | 297440101 | Panel, Door |
|
$ 207.67 | |||||
| 11 | 297255300 | Panel-outer Door, White |
|
$ 288.59 | |||||
| 18 | 297082700 | Handle, Stainless |
|
$ 223.02 | |||||
| 38 | 297129700 | Trim, Door |
|
- | |||||
| 64 | 216403700 | Plug-button, Hole Filler, Door Base |
|
$ 58.12 | |||||
| 65 | 216423501 | Screw-retainer |
|
- | |||||
| 67 | 216423000 | Retainer-lock |
|
- | |||||
| 79 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 216858001 | Screw, Ph Truss Head, 8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 12A | 216373000 | Frame-nameplate |
|
$ 4.04 | |||||
| 18A | 297083500 | Plug-handle |
|
- | |||||
| 22A | 216335400 | Bearing-hinge |
|
$ 67.73 | |||||
| NI | 240537301 | Nut-anchor, Door Hdl Screw |
|
$ 11.34 | |||||
| NI | 297437400 | Nameplate |
|
- | |||||
| NI | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| NIAA | 316095403 | Nameplate, Gibson, White |
|
- |
